Eye Link Wire Mesh Conveyer Belt for Food Processing Bottling Pasteurizing, Automotive Industry and Waterways Reed Clearing

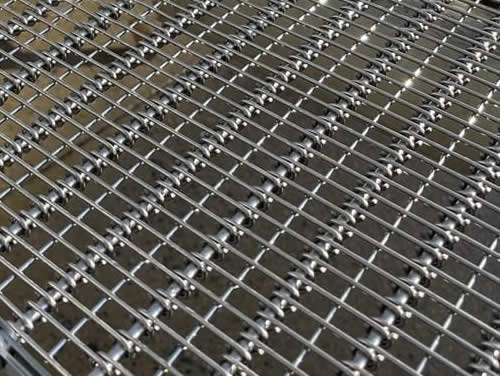

Stainless Steel Eye-Linked Conveyor Belt is a highly durable and flexible metallic mesh belting product ideal for heavy-duty applications. This wire linked conveyor belt is also known as Eye-Flex Conveyor Belt, Wire Eyelet Link Belt, Wire Link Mesh Belt.

Products Overview

Range of Materials: Stainless Steel AISI 304, 316, Carbon Steel, High-Temperature Alloys

Longitudinal Pitch Lengths (mm): 25.4 - 100.0 mm (common pitches include 25.4 mm, 38.1 mm, 50.8 mm)

Eye Link Wire Diameter Range (mm): 1.0 - 3.0 mm

Cross Rod Diameter Range (mm): 3.0 - 8.0 mm

Available Width Range (mm): 200 - 3000 mm

System Requirements for Eye Linked Wire Belt
Catenary Sag: Ensure a catenary sag over the rollers for optimal performance.
Drum and Roller Alignment: The drive and return drum should be 0.08" (2 mm) higher than the support strips, and all drums and rollers must be parallel.
Support Bed Positioning: The support bed must be horizontal for correct belt tracking.
Belt Speed Limitation: The maximum recommended belt speed is 60 ft/min (20 m/min), varying with belt width, load, and system layout.

Features

Inherent Strength: The Eye Linked Wire Conveyor Belt boasts a high tension rating up to 260lb per link row and a roller drive system for increased tension capabilities and extended belt life.
Versatile Design: Available in various pitch spacings, wire diameters, and mesh designs, it can be customized with cross flights, side plates, chain edges, and additional bar links for enhanced strength.
Precise Conveying: This belt is positively driven for accurate tracking, offering a flat and even surface that resists side-to-side deflection for smooth product conveyance.
Rigid Structure: Constructed to be robust and rigid, it is ideal for handling heavy loads and maintaining stability and precision in demanding industrial environments.
High vacuum degree: Heavy-duty belt in modular manufacturing with welded edges, positive driving and auto guiding for high vacuum applications.
Easy maintenance and cleaning

Applications

Stainless Steel Wire Eyelet Link Belts are highly versatile, suitable for many industries, especially food, mechanical, automotive industries, used in processes involving draining, drying, bleaching, deep freezing, washing, etc.

Typical uses:
1, Freezing poultry product
2, Bottling pasteurizing
3, Automotive industry
3, Waterways clearing

Eye Linked Mesh Belts - Designs, Specifications, Case Studies

We manufacture and supply a range of Stainless Steel Eye Link Wire Belts, tailored to meet diverse industry needs.

Three types of styles: EU Design, US Design, and the Reinforced Belt Type.

Choose Eye Linked Mesh Belts according to designs:

Eye-Link belts are available in either EU (standard) or US designs, construction based on the placement of the eye links throughout the belt.  In the US design, the eye-link ends are equally spaced apart; in the EU design, the eye links are placed so the ends are in direct contact with one another. EU design belts display a more closed grid pattern, while the US design is more open.

EU Design:

EU Design Eye Link Wire Belt is characterized by fine wire diameters and a closer pitch, which allows for the smooth transportation of small and delicate items.

Eye Linked Wire Belt EU Style has a denser wire mesh structure, providing a more uniform and flat surface compared with US style. This feature is essential for handling smaller or more fragile products that require a higher level of care during conveyance.

US Design:
Eye Link Wire Belt US Style features a more open and rugged design with larger wire diameters and a wider pitch. This design is ideal for industries like metalworking, heavy baking, and heavy loads industrial processing.

The primary difference between the US and EU designs lies in the mesh size and wire gauge. US Design is built to accommodate larger and heavier products, offering increased strength and load-bearing capacity compared to the finer EU Design.

Reinforced Heavy Duty:
This belt is ideal for heavy mining, automotive parts handling, and large-scale baking operations, with superior carrying capacity and flat surface profile. Custom designed to meet specific requirements, it features reinforced edges and extra-heavy wire links to withstand extreme stress, making it the perfect choice for environments where standard belts falter.

Customer Service and Products Available

Custom Design: Our conveyor belts are custom designed, offering almost unlimited configuration options to suit heavy-duty applications.

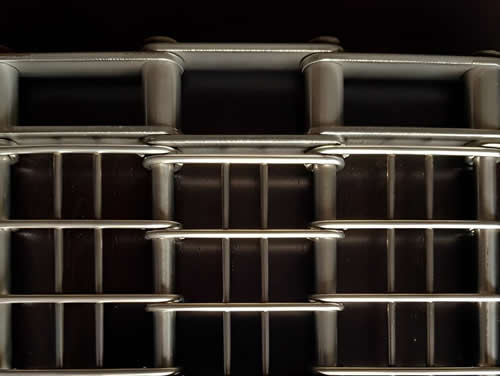

Drive Options: Enhance tracking and reliability with our variety of drive choices, including friction-driven cage rollers, positive drive, and chain edge drive systems.
Material Variety: We provide belts in a range of materials, catering to diverse industrial needs and requirements.
Added Features: Customize your belt with options like side guards and flights for increased functionality and efficiency.
Strength and Cleanliness Enhancements: Opt for rings, under welding, or spring spacers available to increase belt strength, simplify cleaning and maintenance processes.

Choosing Mesh Belts with, or without Spacers

Eye Flex Wire Link Belt without Spacers

This mesh conveyor belt is a standard wire and rod linking conveyor belt in a straight modular form without spacers. It's ideal for food processing due to its flat surface, open mesh configuration, and ease of cleaning, with the added benefit of cost-effective repairs.

Belt pitch range: 16mm to 100mm
Wire diameter: 1.8mm to 3mm
Cross rod diameter: 3.2mm to 8mm
Min. gap spacing: 1.8 to 3mm

Eye Link Mesh Belt with welded wire spacing

This wire belting features underwelded wire spacing, enhancing hygiene and sanitation by eliminating potential bacteria traps. Its design simplifies cleaning, making it highly efficient for sanitary applications.

Belt pitch range: 16mm to 75mm
Wire diameter: 1.8mm to 2.5mm
Cross rod diameter: 3.2mm to 8mm
Min. gap spacing: 2 to 2.8mm

Eye Link Mesh Belt with spring spacers

This conveyor mesh belt includes ring spacers, creating a wider belt gap and enhanced dimensional stability in heating or freezing applications. The springs allow wires to move on the cross rod, contributing to the belt's dimensional stability.

Belt pitch range: 25mm to 75mm
Wire diameter range: 2mm to 2.5mm
Cross rod diameter range: 5mm to 8mm
Min. gap spacing range: 4mm to 5mm

Specific Belting Products in Application

US Design Heavy-duty modular conveyor belt - Round Wire Belt

AISI 304 wire belt used for conveyors withstanding high temperatures, heavy loads, and abrasive conditions.

Stainless steel AISI 316 conveyor belt, EU design - Opening: 22x50mm

Length 400 mm x Width 1000 mm including chain drive on both sides.
Delivered to Denmark customers

Chain Driven Wire Linking Belt for Clearing Waterways

Chain Driven Eyelet Mesh Belt is used to remove weed and debris in Canals, Rivers, Parks, for the specific task of clearing debris and weeds in waterways

The heavy wire linked belts can handle the rigors of aquatic environments and can efficiently manage the removal of debris and aquatic vegetation. Chief reasons for using:

Robust Construction: These belts are typically made of stainless steel or other corrosion-resistant materials to withstand prolonged exposure to water and varying pH levels often found in natural waterways.

Large Openings: The mesh of these belts usually has larger openings to allow water to pass through while capturing debris and weeds. This design is crucial to effectively filter out unwanted materials without clogging.

Chain-Driven Mechanism: Many of these belts are chain-driven, providing the necessary strength and durability for the heavy and uneven loads that come with removing debris and aquatic vegetation.

Compatibility with Waterway Cleaning Machinery: These belts are often part of larger systems or machinery designed for waterway cleaning, such as aquatic weed harvesters, which cut and collect vegetation, and dredgers, which remove sediment and larger debris.

Environmental Considerations: The design of these belts is also considerate of the aquatic environment, aiming to remove unwanted materials without harming the aquatic ecosystem.
