Stainless Steel Filter Discs

Stainless Steel Wire Mesh Filter Discs

We supply and export stainless steel mesh filter elements in the forms of wire cloth discs, circles, screen packs, filter assembly or cut pieces.

Mesh materials for processing: AISI 430, 302, 321, 304, 304L, 316316L, 904L,  Monel, Inconel.

Mesh Fabric Weaving: Plain, Twill, Dutch Weave, Five Heddle Weave.

Processing of Filter Discs: Spot welded, cut pieces, framed, rimmed, single or multi layer

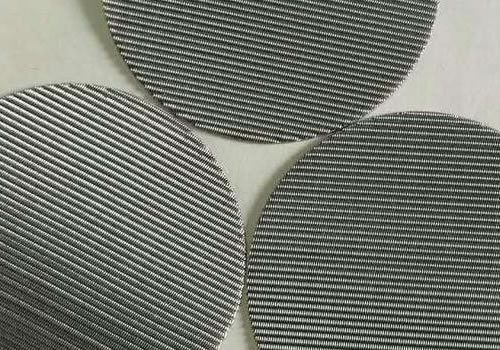

Wire Mesh Filter Disc
Material: Stainless Steel Wire
Particle filtration: 49 micron
0.0019 inch

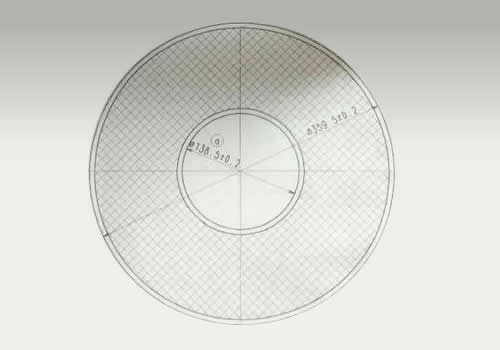

Drawing Reference attached

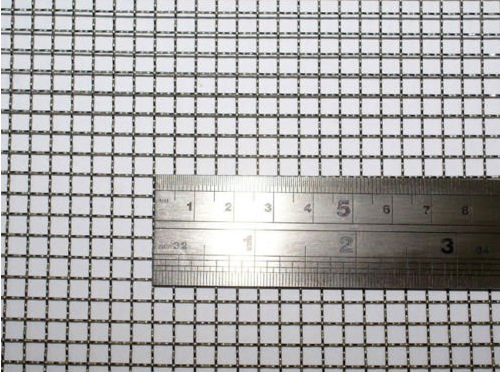

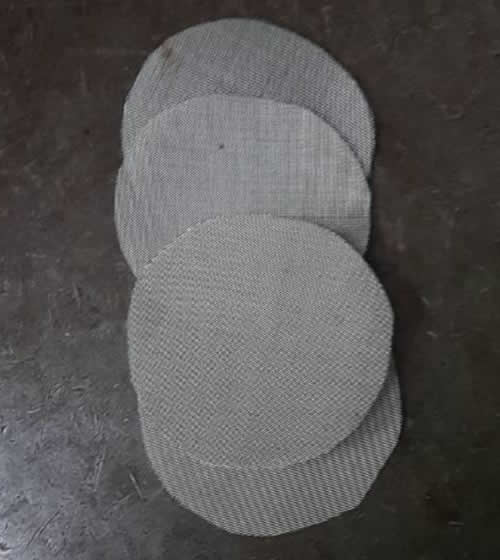

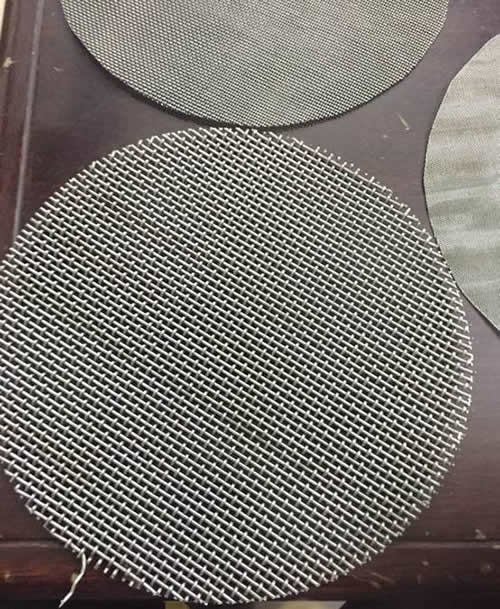

Wire Mesh Discs
Stainless steel wire mesh discs: 4 inch in diameter, 0.040” wire, 0.200” opening mesh. Similar mesh sizes as shown below:



Stainless Steel Wire Mesh Screen Disc
Disc Type Filter Screen
Material: 304 stainless steel fiber
Mesh: 250 mesh
Discs diameter 1.5625”

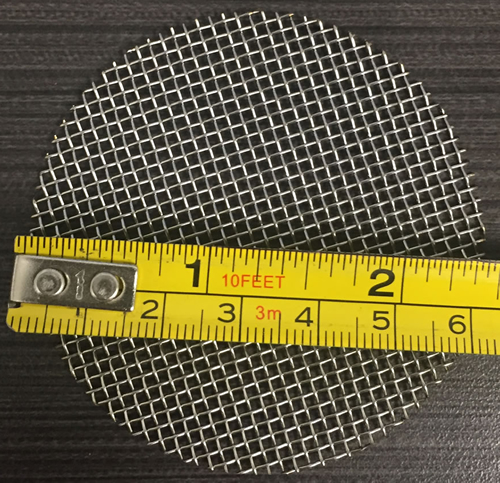

SS Mesh Disc
Filter Assembly for Valves: Circular Filter Disc with Filter Washer and Support
Filter material: 1mm x 1mm square hole stainless steel mesh
Thickness: 0.8mm
Drawing reference attached.

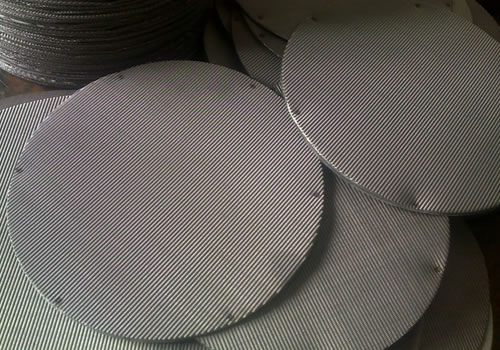

Filter Disc Screens for Rubber Industry
Filter Disc Extruder Screen with Support rings
Application: Extruder screen
Disc outside diameter: 16mm
Support ring: 2 mm width supporting ring encasing the screen
Screen material: 200 mesh



Wire Mesh Filter Disc, for Fuel ang Gas Filters
Fuel and Gas Filter Elements
Filter discs, exported to USA
304 Stainless steel mesh discs, 2.5” diameter
Used in automotive type fuel filters
Filter rating: Filtration of particles down to .0004”.
Feature: Minimum wire thickness to reduce flow restrictions while allowing more openings for fuel to flow.

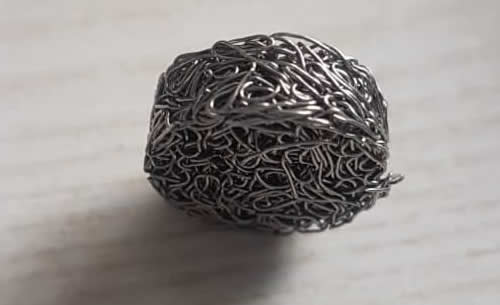

SS304 Sintered Wire Mesh Filter Discs, for Demister Uses
Used in liquid or gas filtration
Material: SS 304 wire mesh, ,Ø14x5mm (±0.2) - wire Ø0.23mm - mass 2gms (±0.2)gms

Mist Eliminator Demister Pad



50 Mesh Filter Mesh Disc
Material: SS304
Mesh: 50X50
Wire Diameter: .0085
Roll width: 48 inch x 100 line feet
SS304 Wire Mesh Circles

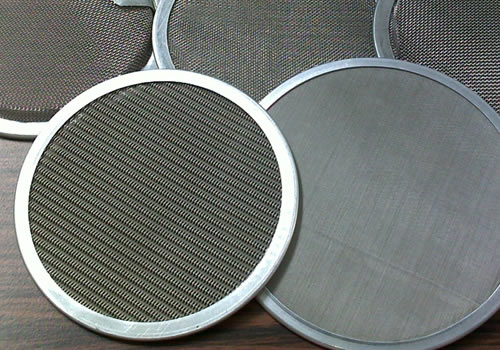

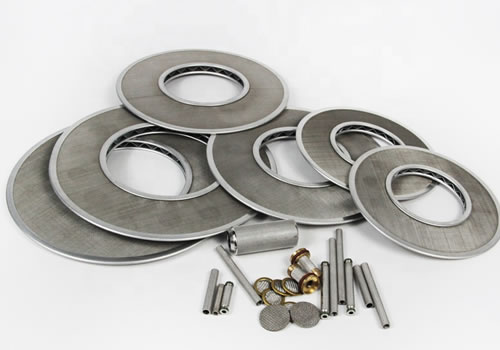

316L Stainless Steel Dutch Weave Wire Mesh Filter Cloth Discs

Filter material: 316L Stainless Steel Dutch Weave Wire Mesh Filter Cloth 200 x 1400 mesh

316L Stainless Steel Dutch Weave Wire Mesh Filter Cloth Discs
Disc diameter: 32mm including ring
Thickness: 1mm
To Holland Automation and navigation equipment industry

Drawing reference:



SS Filter Discs, 2 Layers Pack Screen

Plastic Extruder Screen Packs
Filter discs to Iran
Fabricating ss wire cloth into filter packs:
Round shape with diameter of 20mm , in 2 layers .
Layer 1: strong support layer
Layer 2: filter layer: mesh 100 and – 200 mesh

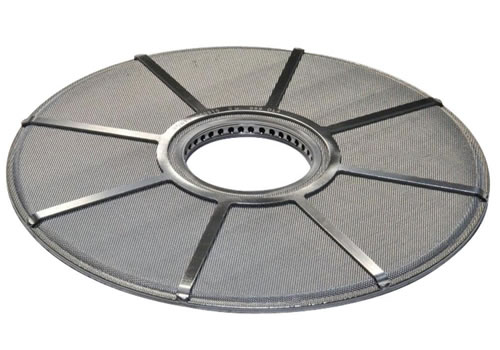

Filter Disc for Polyester Films Filtration

Polymer Filter Disc Supplied for India polyester films industry.
Extruder screen, filter elements for Polymers and Engineering Plastic compounds production
Disc with 2.5 inches ID, 12 inch OD and 3000 PSID.
Filter rating: 40 micron



Filter Mesh Circles of Stainless Steel 4% Ni Material

Circular Filter Screen Packs
Wire cloth slit into circles

Discs available:

Material: Stainless Steel 4% Ni
20x20 mesh x 0.55mm wire x 3' x15m, roll weight: 41.8kg
Outer disc diameter  8", 9", 10".

Material: Stainless Steel 4% Ni
40 x 40 mesh x 0.25mm wire x 3' x 15m, roll weight: 17.3kg
Outer disc diameter 8".

Material: Stainless Steel 4% Ni
80 x 80 mesh x 40BWG x 4' x 30 m, roll weight: 20kg
Outer disc diameter: 7" , 9", 10".

Material: Stainless Steel 4% Ni
Twill weave 60x60 mesh x 34BWG x4'x30m, roll weight: 48kg
Outer disc diameter 8" , 9", 10".

Material: Stainless Steel 4% Ni
120 mesh x 4'x30m, roll weight 14kg
Outer disc diameter 8".

Material: Stainless Steel 4% Ni
150meshx4'x30m=9kg
Outer disc diameter 8".

Material: Stainless Steel 4% Ni
200mesh x4'x30m=9kg
Outer disc diameter 8".

Material: Stainless Steel 4% Ni
200mesh and 250 mesh twill weave

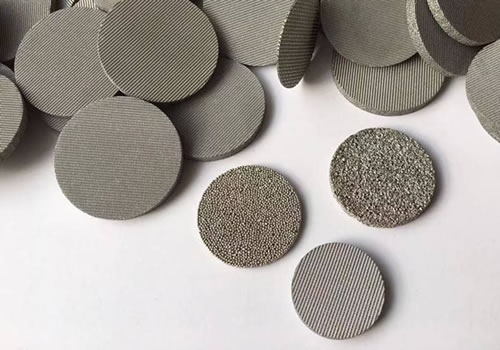

Sintered SS Disc Filters
Fine Particle Filter Discs
Multi layer wire cloth sintered wire mesh sheet can be made into circular screen or fluidized board
Application: Chemical industry and power plant
Ø.500" (Ø 12mm) flat sintered mesh filter discs without rim
Opening: Max .005" (.012mm).
Material: S.S 316L
Diameter: .030" (.75mm)
To UK for project to filter impurities, to eliminate fine particles

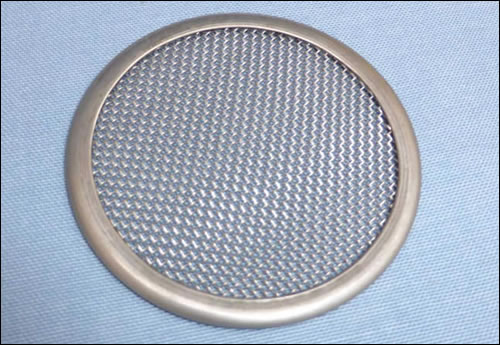

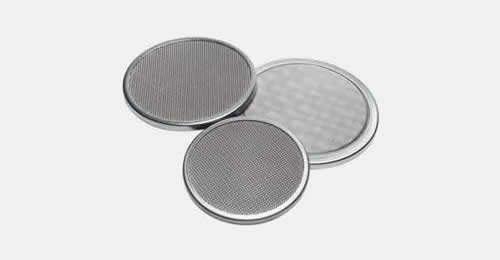

Stainless Steel Filter Discs with Stainless Steel Rims, for water filtration
Food Grade Mesh Screen Filter
For water filtration
Disk OD: 84 mm
Openings in the screen: 1mm max.

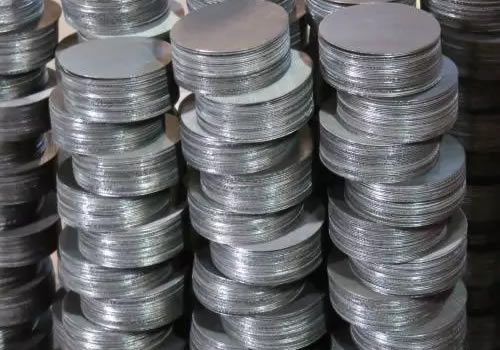

Circular Filter Screen, Single or Multi Layer Wire Cloth

Single piece of woven wire cloth can be cut to circular form, or cut to filter strips, to be used as filter screen in chemical fiber and plastic extruder process. Filter screen used in plastic extruding process is also called Extruder Screen

Circular Filter Screen, Available in Circular Diameter 62mm, 72mm & 92mm
Media: SS mesh 20. 40, & 80

SS 304 Wire Mesh Circular Filter Screen 20 x 20 Mesh

Screen type: SS 304 Wire mesh, Mesh 20x20, wire dia 0.37"
Circular filters, in diameter 155mm

Screen type: SS 304 Wire mesh, Mesh 40x40, wire dia 0.21"
Circular filters, in diameter 155mm

Screen type: SS 304 Wire mesh, Mesh 60x60, wire dia 0.15"
Circular filters, in diameter 155mm

Screen type: SS 304 Wire mesh, Mesh 80x80, wire dia 0.12"
Circular filters, in diameter 155mm



Mesh Screen in AISI 304 Stainless Steel, for Process Filter

SS Screen Filter, of ss mesh cloth
AISI 304 Woven Wire Cloth for Spin Pack Filters
Specifications as following:
Stainless steel AISI 304 wire mesh cloth
Material: AISI 304, 430 also available.
Mesh: 35 Mesh x 0.015" wire diameter
Roll size: 4'x112"

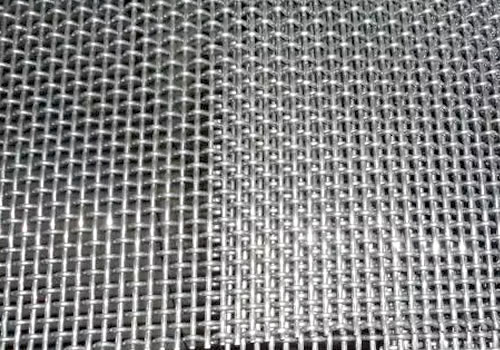

Stainless Steel Filter Screen

Stainless steel screen
Specifications as following:
Material: Wire cloth
304 woven wire, 200 x 200 x 0.0021
Mesh opening: 74µm +/- 5µm
Wire diameter: 54µm
Open area: 33.5%
Thickness: 85µm



Stainless Steel Mesh Filters

Specifications as following:
Mesh Filters, details.
Material: 304 Stainless Steel Mesh
Mesh: 30 mesh x .012" wire
Opening: 0.021"



Stainless Steel Filter Wire Mesh

Sieve Cloth
Specifications as following:
Material: 316 woven wire mesh
Aperture: 20um, 15um, 10 um
Application: For testing sieve of fine catalyst powder
316 SS sieve cloth suitable for high pressure and high temperature work environment



Metallic Mesh Filter Screen, Stainless Steel 304L

Specifications as following:
Material: Stainless steel screen ( square mesh)
In Stainless steel X2CrNi18-9 (304L)w
Material standard: ST1228
Wire diameter: 0.355mm
Filter percentage: 44%
Weight kg per square meter: 1.51
Panel Size: 400 x 400 mm
Sheet thickness: 5 mm.
see the attached



Filter Screen Mesh

SS 304 Square Opening Filter Screen Mesh, 50 x 50 Mesh
Stainless screen mesh, square hole
Specifications as following:
Material: SS304
Wire diameter: 0.193mm
Mesh: 50x50mesh
Roll length: 30m

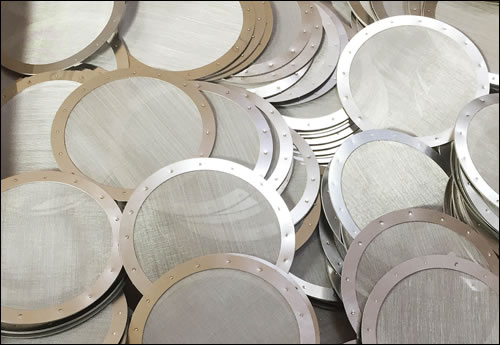

Double Layer Filter Disks, in Circles 262 mm

2-layers mesh cloth, fixed with 6 welded spot
First layer: Plain woven mesh, 29 mesh, opening 0.450 mm, wire 0.420 mm
Support layer: Twill weave mesh, 40 mesh, opening 0.400 mm, wire 0.250 mm



Popular stainless steel mesh used as disc filter screens:

Plain weave wire mesh: 3-300 mesh
Twill weave wire mesh: 20-635mesh
Three heddle weave mesh fabric: 60X40,24X18, 50X30, 80X60mesh
Five heddle twilled woven mesh: 15X13 to 132X85 mesh
Plain dutch weave mesh cloth: 12X64 mesh to 50X250mesh
Twill dutch weave mesh cloth: 24X220 mesh to 400X2800 mesh
Reverse dutch plain weave wire cloth: 66X18 to 1005X200 mesh
Reverse dutch twilled weave wire cloth: 72X15 to 400X120 mesh



Stainless Steel Mesh Diffusers

Stainless mesh ss grade is made into disc type diffusers of various diameters.
Hole: Square opening
Layer: single or double
Edge and surface: Deburred, break sharp edges
Application: For vent / air flow

Learn more.



We also supply wire mesh pleated candle type filter elements
