Stainless Steel Insect Screen Mesh
SS mesh with excellent corrosion resistance, alkali and acid resistance, is ideal for high grade modern building construction. We offer a range of screening products of stainless steel mesh: pool and potio screen, solar screen, sunshade screen, no-see-through window screen and ventilation nets.
Insect Screen Sill of Stainless Steel Mesh 316
Material: 316L Alloy
Stainless Steel Mesh
Offering superior insect protection
Finish: Black powder coating
Feature: Easy to install, burglarproof, bulletproof, anti-fly and mosquito
Rigid Stainless Screen Meshes / Insects Proof Nets offer high temperature resistance,
not easy to wear, not easy to aging,
good toughness and high strength.
Technical Characteristics
Property | Test Method | Results Warp | Results Fill |
Tensile Strength | |||
a) Cut strip Method(lb) | ASTM D 5035 | 138 | 112 |
b) Grab Method(lb) | ASTM D 5034 | 171 | 142 |
Tearing Strength Trapezoid Method(lb) | ASTM D 5587 | 33 | 27 |
Yarn Slippage(lb) | ASTM D 4912 | 30 | 26 |
Stiffness(mg) | ASTM D 3656 | 247 | 166 |
Stretch(%) | TMS-TM-002 | 1.5 | 2.6 |
Set(%) | TMS-TM-002 | 0.2 | 0.4 |
Mesh Weight(oz/yd sq) | ASTM D 3776 | 6.9 | |
Fabric Thickness(in.) | ASTM D 1777 | 0.024 | |
Bond Strength(lb) | CS 248-64(5.5) | 45 | |
Openness/Transmittance(%) | 17 | 45.6 | |
Blocking | FS L-S-125B(4.4.9) | Scale 1 | |
Colorfastness to 1200hrs Color Change According to AATCC Gray Sale | TMS-TM-003 | All Colors 4 min | |
Mullen Bursting Strength (psi) Initial | FS L-S-125B(4.4.7) | 293 |

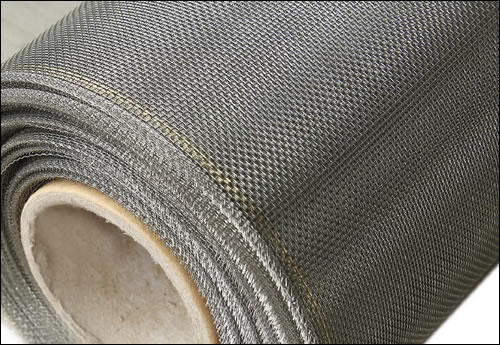

304 Stainless Steel Meshes for Window Screen
Material: 304 Stainless Steel Natural Finish
Specifications:
Mesh: 18x16 mesh
Wire diameter: 0.27mm
Type: Woven, netting
Square Hole 304 Mesh for Window Screening
Material:
304 Stainless Steel Natural Finish
Specifications:
Mesh Size/ Count Mesh - Wire Dia
Mesh:
14 x 14
Wire diameter: 0.35 mm
Type: Woven, netting

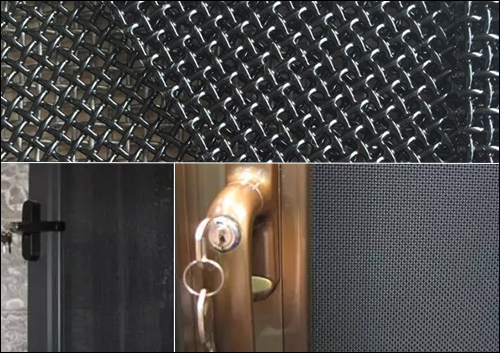

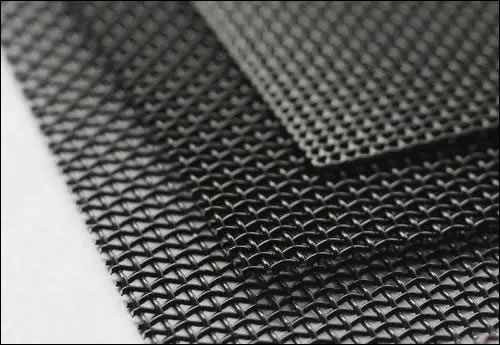

304 Stainless Steel Mesh PVC Coated Back Finish
Material: 304 Stainless steel mesh
Finish:
Plastic / polyester / powder coated black
Type: Woven, netting
Hole: Square
Mesh: 16x16mesh
Wire diameter: 0.24mm
Mesh: 20x20 mesh
Wire diameter: 0.25mm
Features: High security panels, excellent corrosion resistance

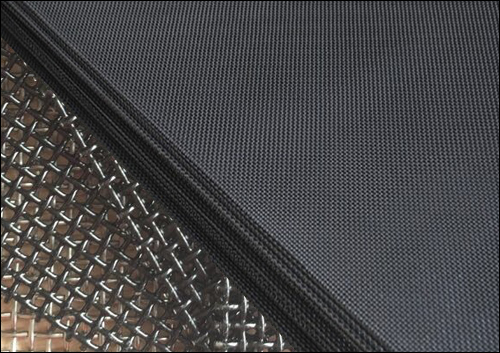

Stainless Steel Fly Screen, No Powdering
Material:Stainless Steel Wire
Weave Style: weaving after crimped
Technique: Woven
Mesh:0.7-21 mesh
Hole size: 0.1-1.5 mm
Color: Silver
Finish: Stainless steel bright
Hole shape: Square Hole
Length: requirement
Width:requirement
Feature: Corrosion Resistance
Wire Diameter: 0.4-20 mm
Regular Specification | Other size | Popular Size |
11mesh x 0.8mm in 316 | 12mesh x 0.7mm | 750mm x 2000mm (2400mm or 3000mm) |
11mesh x 0.9mm in 304 | 12mesh x 0.6mm | 900mm x 2000mm (2400mm or 3000mm) |
10meshX0.81mm | 14mesh x 0.6mm | 1200mm x 2000mm (2400mm or 3000mm) |
14mesh x 0.5mm | 1500mm x 2000mm (2400mm or 3000mm) |

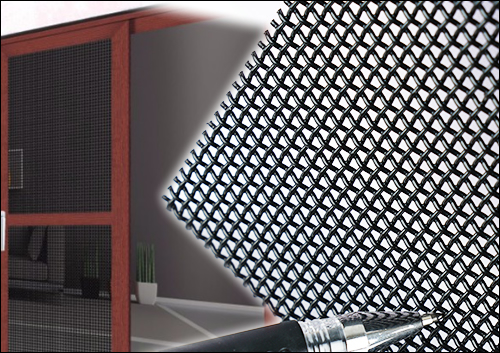

304 Stainless Steel Insect Netting for Window Security
High security stainless steel fly screening
Dust proof stainless steel mosquito nets constructed of stainless steel wire cloth and aluminum frame

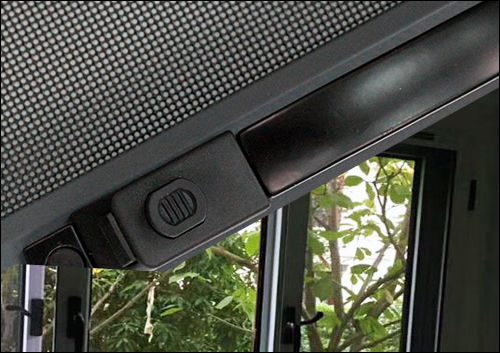

Stainless steel mosquito nets / insect screens
Structure:
Screen Frame Material: Aluminium Alloy 6063T5
Frame Thickness:1.4mm~2.0mm
A Lock set: heavy hinges, avoiding inner door drop
Stainless steel mesh:fixed by screw and EPDM sealing strip to be cushioned and aging-resistant
Insect mesh material: Stainless steel mesh 304,316
Weave: Plain weave
Mesh color:Black
Screen Frame color: White, black, bronze-coloured, red wooden color, yellow wooden color
Forms:Semi-finished materials / fixed Size
Key Features
Safety and robust with high quality assurance
The stainless steel mesh has smooth surface, strong resistance to impact, safety assurance and also insect protection
Packing
Inner: PE bag shrinked, wrapped by bubble bag
Outer: cardboard carton
Or custom packing
304 316l Stainless Steel Window Screen ( specification can be produced as per requirements)
Product name | Specification |
Material | ||
Mesh/Inch |
Wire Gauge |
Roll Size |
||
Stainless Steel Insect Screening |
14X14 |
BWG38 |
3"X100" 4"X100" 1X25M 1.2X25M |
304, 316, 316L. |
16X16 |
||||
18X18 |
||||
18X14 |
||||
20X20 |
