Stainless Steel Mesh Sheet

Stainless steel mesh sheet is also knows as stainless steel wire mesh, stainless steel wire cloth, stainless steel wire screen, woven wire mesh sheet.

The wire mesh sheet can be woven with following mesh counts to form a firm flat sheet:

Plain weave wire mesh can be woven from 1X1mesh to 635X635 mesh.
Plain Dutch weave can be woven from 10X64mesh to 80X700mesh
Twill weave can be woven from 20x250mesh to 400X2800mesh

Material: Stainless steel wire 201, 202, 304, 304L, 316, 316L, etc

Standard roll width of stainless steel square wire mesh: 1m to 48"

Standard roll length of stainless steel square wire mesh: 30m to 100"

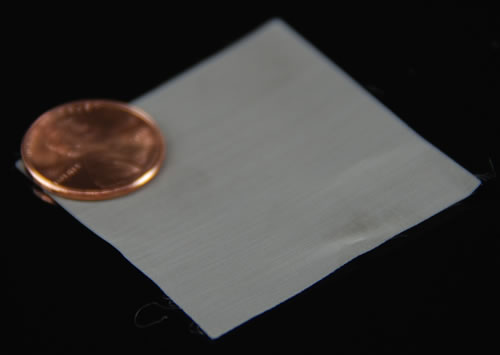

Stainless Steel Mesh Sheet
50mm*50mm Stainless Steel Mesh Sheet

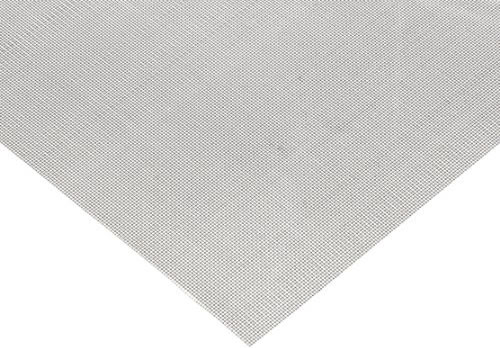

304 Stainless Steel Mesh Sheet
304 Stainless Steel Mesh Sheet

We supply high quality stainless woven mesh screen used on doors to make your family far away from danger. Made from high tensile stainless steel, woven into a fine mesh, it is hard to cut and break. It used in petroleum, chemical industry, mine, environment protection, food industry, paper-making, electronic industry, etc.

Stainless steel 304 woven wire cloth plain type:

item Aperture wire diameter length width
1 1mx1m 0.5mm 15 1.25
2 0.7x0.7 0.28mm 15 1.25
3 0.4x0.4 0.22mm 20 1.25
4 mesh 10 0.5mm 15 1
5 mesh20 0.34mm 15 1
6 mesh30 0.25mm 15 1

High Carbon Steel Mesh Sheet:

item Aperture wire diameter length width
1 mesh 10 0.5mm 30 1
2 mesh 10 1.25mm 30 1.5
3 mesh20 0.34mm 25 1
4 mesh 20 0.5mm 25 1.5
5 mesh 30 0.25mm 25 1
6 mesh30 0.25mm 30 1.5
7 3mmx3mm 1.8mm 30 1.5

Other type stainless steel sheets specifications:

Item Description Type Length Width Weight
1 rolled ST ST Dia. 8MM AISI 316 L 20KG
2 rolled ST ST Dia. 12 MM AISI 316 L 30 KG
3 rolled ST ST Dia. 32 MM AISI 316 L 50 KG
4 rolled ST ST Dia. 40 MM AISI 316 L 60 KG
5 rolled ST ST Dia. 45 MM AISI 316 L 50 KG
6 ST ST sheet thickness 3MM AISI 316 L 2M 1M
7 ST ST sheet thickness 5MM AISI 316 L 4M 1M
8 ST ST sheet thickness 6MM AISI 316 L 4M 1M
9 ST ST sheet thickness 6MM 316 TI 4M 1M
10 ST ST sheet thickness 3MM 304 60KG
11 ST ST ROD , Dia. 42MM 316 55KG
12 ST ST ROD , Dia. 20MM 316 20KG
13 ST ST sheet thickness 18MM 316 1M 105MM 61 KG
14 ST ST ROD , Dia. 105MM 316 11KG
15 ST ST ROD , Dia. 150MM 316 22KG
16 ST ST ROD , Dia. 20MM 304 50KG
17 ST ST ROD , Dia. 30MM 304 50KG
18 ST ST ROD , Dia. 35MM 304 50KG
19 ST ST ROD , Dia. 40MM 304 50KG
20 ST ST ROD , Dia. 50MM 304 50KG

The varieties of stainless steel woven wire mesh sheets:

1. The standard width: 1m-1.2m

2. The standard length: 30m/roll or as your request

3. The suitable wire diameter: 0.025mm--4.0mm

4. Mesh/inch: 3--400mesh

5. packing: Waterproof Paper inside, plastic film outside, then pallet or wooden box.
