Sintered Multi Layer Woven Wire Mesh Cloth in Stainless Steel - Five Layer, Three Layer and More

Multi-layer sintered metal mesh is a robust and durable filter media used in industrial liquid and gas filtration, chemical processing, pharmaceutical filtrations and water treatment. Sintered metal mesh is made of multi-layer woven wire mesh cloth laminated through a high temperature vacuum sintering process. Popular materials applied are stainless steel 304 and ss 316 grade, other alloy materials also available. Popular types of multi-layer sintered mesh include 3-layer and 5-layer.

Materials:
SS304 (SS304, 304L);
SS316(SS316, 316L);
Custom special alloys available:
Hastelloy, Monel 400, Inconel 600, SS904 grade;
Other metal alloys.

Features:
Multi layer sintered metal mesh enjoy following benefits:
Superior mechanical strength;
Precise filtration;
Non-migration filter media;
Anti-clogging;
Efficient backwashing;
Excellent resistance to heat and corrosion.

Multi layer stainless steel mesh sintered sheet is supplied in various filtration ratings and filter elements:
Sintered mesh filter sheet;
Cut discs;
Cone;
Candle and basket filters.

Uses:
Sintered multi layer woven wire mesh in stainless steel is popularly used in chemical processing, liquid and gas filtration, pharmaceutical filtration, water treatment and new energy manufacturing and other precision filtrations.
Sintered multi layer wire mesh laminate can be processed into various filter elements, including round discs, tubular, conical and corrugated forms.

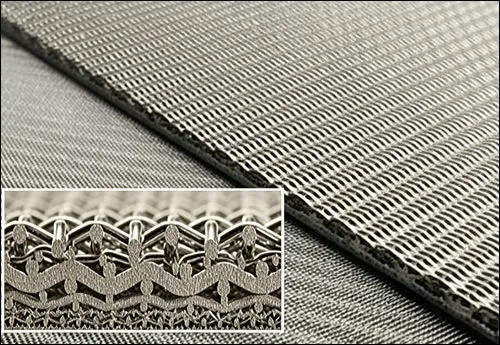

Multi-layers Sintered Metal Mesh 50 Micron

Multi-Layer Sintered Metal Mesh Filter Elements
Filtration rating: 50microns
Size: 300x300mm

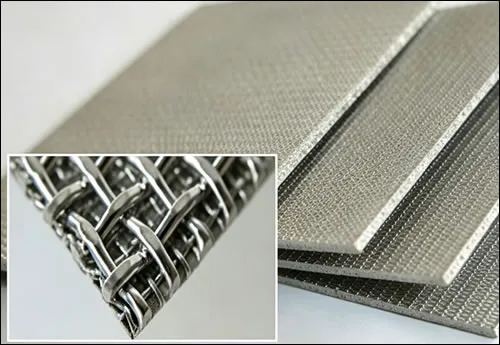

Multi-layer Stainless Steel Woven Wire Cloth Sintered Filter Mesh - 2 micron, 5 micron, 10 micron

Nominal filter rating ( µm): 2 micron
Absolute rating 98% ( micron): 8-9
B. P.P ( pa): 5000 - 6000
Resistance coeffient 105: 14

Nominal filter rating ( µm): 5 micron
Absolute rating 98% ( micron): 12-14
B. P.P ( pa): 3300- 3700
Resistance coeffient 105: 12

Nominal filter rating ( µm): 10 micron
Absolute rating 98% ( micron): 16-18
B. P.P ( pa): 2800- 3000
Resistance coeffient 105: 7

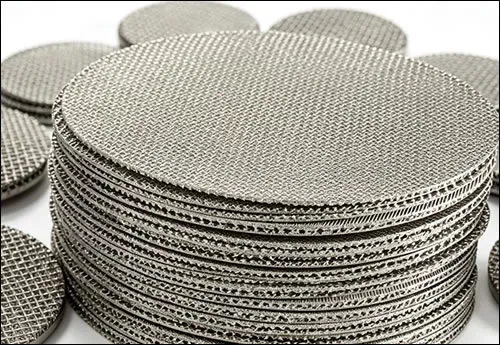

Five-Layer Sintered Mesh 1 Micron

150mm filter disc
Filter material: Five-Layer Sintered Mesh
Filtration rating: 1um

Five-Layer Sintered Mesh Filter Disc - 2.5um
150mm filter disc
Edge rimmed
Filter material: Five-Layer Sintered Mesh
Filtration rating: 2.5um

5 Layer Sintered Mesh Filter Disc - 5um
150mm filter disc
Edge rimmed
Filter material: Multi-Layer Sintered Mesh
Filtration rating: 5um

3 Layer Stainless Steel Sintered Mesh
Discs OD: 16mm
Material: Three Layer Woven Wire Mesh Sintered in SS 304

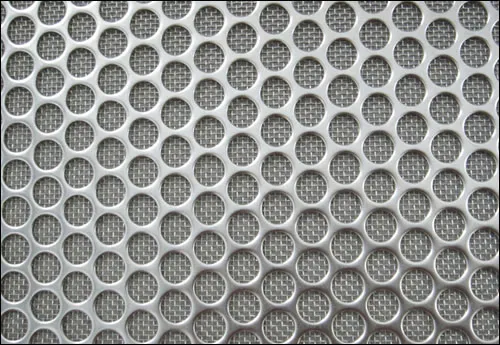

Stainless Steel Sintered Mesh in 316L

Multi layer metal woven wire mesh sheet bonding together
With self supporting layer within the sintered mesh sheet
Supporting layer: Perforated round hole sheet
Filtration rating: 1~200um
Material: 316L

5 micron Sintered Mesh Laminates
Absolute Rating: 5 um
Material: SS 316L
Mesh panel size 1m x 1m
Panel thickness: 1.6mm
Sintered mesh panel for centrifuge filtration basket
