304 and 316 Stainless Steel Screen

SUS304 SS Mesh Screen Woven into Square Holes
SUS304 SS Mesh Screen Woven into Square Holes

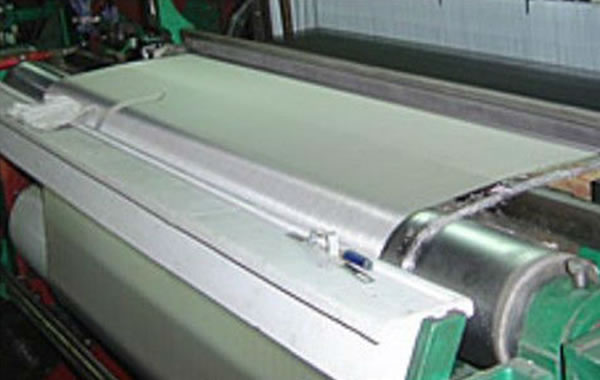

Weaving Looms
Weaving Looms

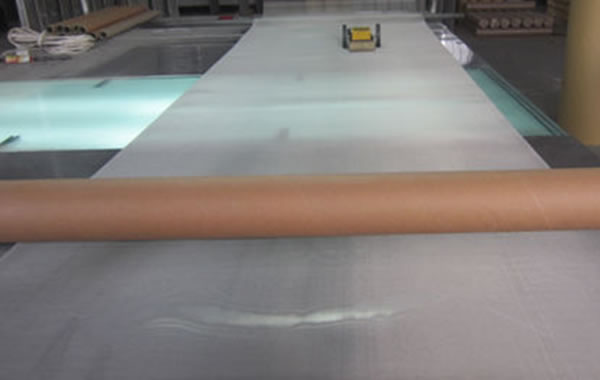

Quality Inspection of Stainless Steel Filter Screen
Quality Inspection of Stainless Steel Filter Screen

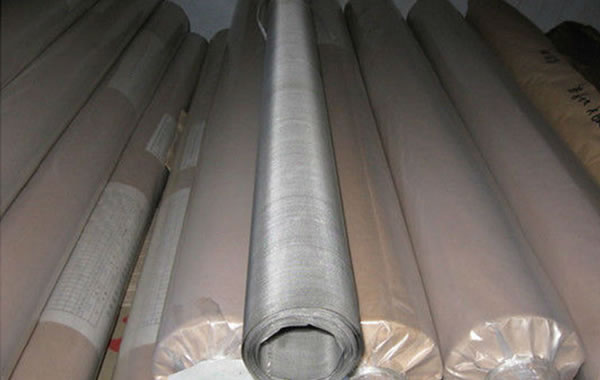

SS Wire Mesh Screen Rolls
SS Wire Mesh Screen Rolls

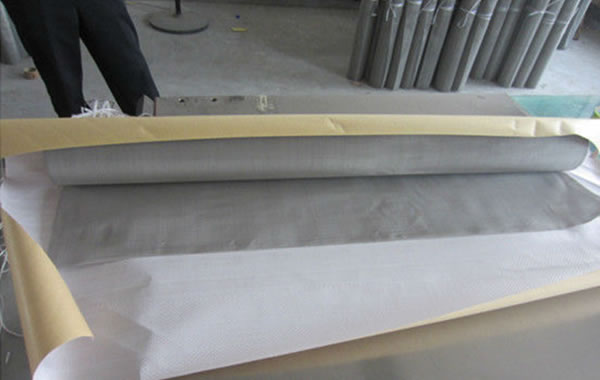

Packed 316 SS Mesh Screen for Export
Packed 316 SS Mesh Screen for Export

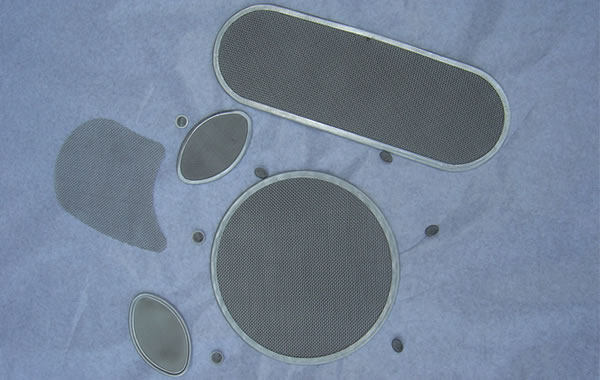

Wire Mesh Screen Discs
Stainless Steel Mesh Screen Punched and Welded into Filter Discs

Technical Details of Stainless Steel Screen with Mesh Counts Per inch, Wire Diameter, Aperture and Open area and Unit Weight.

Mesh Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch mm Inch mm
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8

Common Information:

Materials:
According to the material, stainless steel screen can be divided into: SUS302, SUS304, SUS316, SUS304L, SUS316L, SUS310, SUS310s, SUS430 and other stainless steel grades. 304 and 316 and the most popular metal materials applied for weaving and processing.

Weaving : Plain weave, twill weave, Dutch

Features: Stainless steel mesh screen 304 and 316 offers properties of acid-resisting, alkali-resisting, heat-resisting, wear-resisting etc.

Uses: Used as filter fabric screen or processed into filter discs, in mine, oil, chemical industry, food industry, pharmaceutical industry and machine producing etc.

Packing: Water proof paper with the poly bag outside, then in wooden case or the pallet.
