Square Hole Wire Mesh for Disc Screen and Filter Elements

Square Opening Wire Mesh

Square Opening Woven Wire Mesh in Stainless Steel, Plain Weave (Common Grade):

He Hua offers various grades of stainless steel wire mesh plain weave, stainless steel wire mesh twill weave, stainless steel Dutch plain weave, stainless steel Dutch twill weave and stainless steel bolting cloth. Our experienced technicians can produce a variety of woven patterns, Twill Weave, Plain Weave and Dutch Weave. In this page, we mainly introduce square opening woven wire mesh in stainless steel, plain weave (Common Grade).

Square hole woven wire cloth is popularly used for making of disc type and candle type filter elements, sieves and screens.

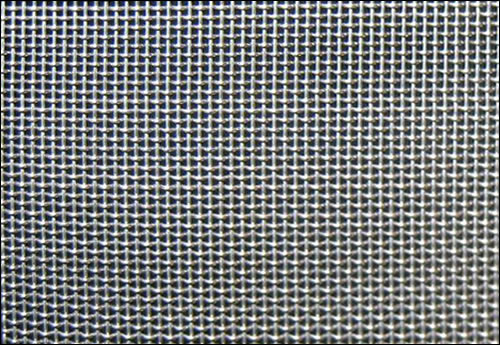

Square Hole Wire Meshes, of 304 Stainless Steel Material

304 ss Square Hole Wire Netting Mesh
30 Mesh Square Hole Wire Mesh, 304ss
Mesh wire : 30 x 30
Wire diameter 0.012 inch
Material: 304 ss
Type: Netting
Hole shape: square
Finish: Bright steel
Roll size: 2 ft wide x 30 ft

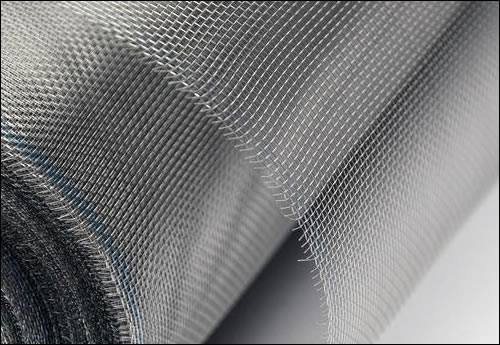

316 Stainless Steel Square Wire Mesh

Stainless Steel 316 Square Woven Wire Mesh, 50 x 50 Mesh
316 SS Wire Mesh
Mesh wire: 50 x 50 per inch
Wire dia: 0.008 inch
Material: 316 stainless
Type: Netting
Hole shape: square
Finish: Bright steel
Roll size: 4 ft wide x 8 ft



Square Woven Mesh, Wire 19 BWG to 30 BWG

Stainless steel wire mesh made from grade 304 and 316 with following specifications;
Wire Mesh, wire diameter 0.30mm (30 BG), square opening, 0.50mm (30 Mesh).
Wire Mesh, wire diameter 0.70mm (22 BG), square opening 1.60 mm (11 Mesh).
Wire Mesh, wire diameter 0.90mm (20 BG), square opening 4.20mm (5 Mesh).
Wire Mesh, wire diameter 0.10mm (19 BG), square opening 3.20mm (6 Mesh).
Supplied in rolls: 4 ' x 100', 5'x 100'



Square Woven Wire Mesh, Dutch Weave

Stainless steel woven wire cloth, 80 mesh, 0.120 mm x 0.197mm, in rolls 1x30m
Stainless steel woven wire cloth 100 mesh, 0.100x0.154mm, in rolls 1x30m



Stainless Steel ( 304) Square Wire Mesh for Disk Filters

Filter wire mesh, square opening, for filter disks:

Filter media: SS 304 Wire mesh, Mesh 20x20, wire dia 0.37"
Disk filters, in diameter 175mm

Filter media: SS 304 Wire mesh, Mesh 40x40, wire dia 0.21"
Disk filters, in diameter 175mm

Filter media: SS 304 Wire mesh, Mesh 60x60, wire dia 0.15"
Disk filters, in diameter 175mm

Filter media: SS 304 Wire mesh, Mesh 80x80, wire dia 0.12"
Disk filters, in diameter 175mm


Stainless Steel Wire Mesh, for Filter of Strainers

Wire mesh for industrial valves strainers
Stainless steel wire mesh with following dimensions:
Mesh width: 1,2 mm
Roll width: 1000 mm
Material: AISI 304



Square Woven Wire Mesh Grade ( AISI 304 and 316), Plain Weave:

Product Description Weaving Method Mesh Wire Diameter mm Aperture mm Roll Size
Stainless Steel Square  Wire Mesh AISI 304 plain weave 2x2 1.650 11,000 1m x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 3x3 1.650 6,810 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 4x4 1.240 5,100 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 5x5 1.240 3,830 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 7x7 0.600 3,030 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 10x10 0.700 1,840 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 12x12 0.500 1,610 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 12x12 0.500 1,610 1,50 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 14x14 0.560 1,250 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 16x16 0.500 1,080 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 20x20 0.400 0,870 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 24x24 0.360 0,698 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 28x28 0.300 0,600 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 30x30 0.300 0,540 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 30x30 0.210 0,636 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 35x35 0.230 0,495 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 40x40 0.180 0,455 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 45x45 0.180 0,384 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 50x50 0.200 0,308 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 60x60 0.160 0,265 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 80x80 0.120 0,197 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 100x100 0.100 0,154 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 120x120 0.080 0,131 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 150x150 0.065 0,104 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 200x200 0.050 0,077 1,20 x 30m
Stainless Steel Square  Wire Mesh AISI 304 plain weave 325x325 0.028 0,050 1,20 x 30m

Common Specifications:

Mesh per Inch
Wire Diameter (mm)
1mesh x 1mesh
3.15
2mesh x 2mesh
2.00
3mesh x 3mesh
2.00
4mesh x 1mesh
1.60
5mesh x 5mesh
1.20
6mesh x 6mesh
1.20
7mesh x 7mesh
1
8mesh x 8mesh
1
10mesh x 10mesh
0.60
12mesh x 12mesh
0.50
14mesh x 14mesh
0.45
16mesh x 16mesh
0.45
18mesh x 18mesh
0.40
20mesh x 20mesh
0.40
24mesh x 24mesh
0.35
25mesh x 25mesh
0.30
26mesh x 26mesh
0.28
28mesh x 28mesh
0.25
30mesh x 30mesh
0.30
40mesh x 40mesh
0.25
50mesh x 50mesh
0.23
60mesh x 60mesh
0.19
80mesh x 80mesh
0.14
100mesh x 100mesh
0.11
120mesh x 120mesh
0.09
150mesh x 150mesh
0.063
180mesh x 180mesh
0.053
200mesh x 200mesh
0.53
