SS Mesh Filter Discs Twill Weave-325 Mesh, 250 Mesh, 200 Mesh, 60 Mesh

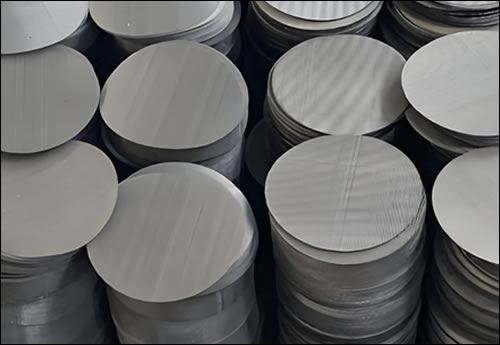

We supply and export durable Stainless Steel Mesh Discs made from Twill Woven Stainless Steel Wire Cloth.

Twill Weave Mesh Discs are stronger and more durable than Plain Weave Mesh Discs due to their diagonal interlacing pattern. With better flow capacity, improved filtration precision and greater flexibility under load, these filter discs are ideal for applications demanding fine particle filtration and durability.

Stainless Steel Mesh Discs Twill Woven are commonly used in chemical, pharmaceutical and food processing.

Materials:

• Stainless Steel 304, 316, and 316L

Disc Forms:

• Flat Discs Round.
• Conical Discs
• Custom Shapes

Specifications: Can be customized.

Stainless Steel Disc 325 Mesh T316 Twill Weave

Disk Diameter – 2.0 inch
Tolerance – 0.005 inch
Wire Diameter: Stainless .0014
Mesh Size: 325 Mesh
Weave Pattern: Twill Woven
SS Grade: T316
Uses: Filter screen for pharmaceutical companies

200 Mesh Discs Twill Weave

Mesh Size: 200mesh x 200 mesh
Weave Pattern: Ttwill weave
Disc Diameter: 8"

250 Mesh Discs Twill Weave

Mesh Size: 250mesh x 250 mesh
Weave Pattern: Ttwill weave
Disc Diameter: 8"

60 Mesh Disc 8" Twill Weave

Mesh Size: 60x60 mesh
Weave Pattern: Twill Woven
Wire Diameter: 34 BWG
Disc Diameter: 8 inch

60 Mesh Disc 9" Twill Weave

Mesh Size: 60x60 mesh
Weave Pattern: Twill Woven
Wire Diameter: 34 BWG
Disc Diameter: 9 inch

60 Mesh Disc 10" Twill Weave

Mesh Size: 60x60 mesh
Weave Pattern: Twill Woven
Wire Diameter: 34 BWG
Disc Diameter: 10 inch
