S.S. 304 Wire Mesh, Manufactured with Construction of Weaving, Welding

Hehua supplies quality stainless steel wire mesh (S.S.304) based on price ex works or FOB, or CIF. Details as follows. If you have any specific requirements like roll size, cut size, weaving patterns or packing details, please let us know.

Popular S.S.304 Mesh:
1) S.S. 304, 20 Mesh x 0.38mm
2) S.S. 304, 40 Mesh x 0.25mm
3) S.S. 304, 40 Mesh x 0.15mm
4) S.S. 304, 60 Mesh x 0.15mm
5) S.S. 304, 80 Mesh x 0.12mm
6) S.S. 304, 80 Mesh x 0.10mm
7) S.S. 304, 100 Mesh x 0.10mm
8) S.S. 304, 120 Mesh x 0.08mm
9) S.S. 304,150 Mesh x 0.06mm
10) S.S. 304,200 Mesh x 0.05mm

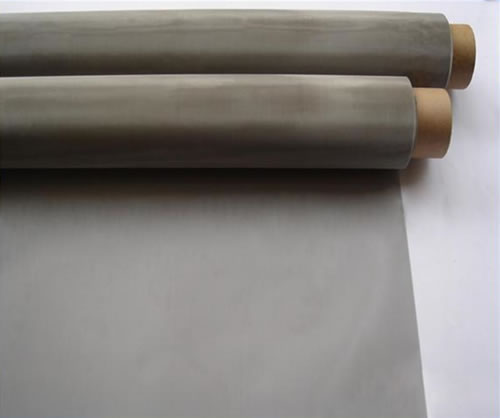

Above stainless steel mesh refers to ss wire mesh woven in square opening, plain weave. The weft and warp wire diameters are the same.

Commercial terms and conditions:
1) Price basis: Ex – works, FOB, CIF, etc.
2) Excise duty : Includes in above price
3) Sales Tax: Extra @ 2% against form C.
4) Delivery: As per agreed monthly schedule or at the time of ordering.
5) Packing: Included
6) Transport: Extra at actually occurred.
7) Payment Terms: 100 % against proforma invoice.


Quality Stainless Steel 304 Wire Mesh, 200 mesh

Stainless Steel Wire Mesh in square opening

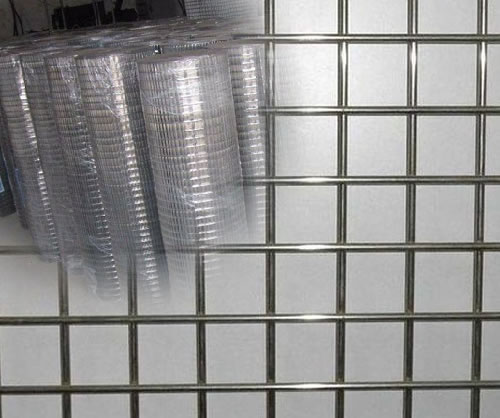

Popular Stainless Steel 304 Wire Mesh, Welded

1), 3/4" opening welded wire mesh rolls
Details:
3/4" opening square mesh welded
Stainless steel wire: 16 gauge
Mesh roll in a width of 24-36"

2), 3/4" opening welded wire mesh rolls
Details:
3/4" opening square mesh welded
Stainless steel wire: 18 gauge
Mesh roll in a width of 24-36"

3), 3/4" opening welded wire mesh rolls
Details:
3/4" opening square mesh welded
Stainless steel wire: 19 gauge
Mesh roll in a width of 24-36"

4), 304 Grade stainless steel wire welded wire mesh
Details:
Roll width 2.50 meters. Opening size 6.4mm x 6.4mm, made of 22 wire diameter.

This size can be made into galvanized finish:
Galvanized steel wire welded wire mesh, electric galvanizing:
Opening size: 6.4mm x 6.4mm, wire diameter 22.

5), Electro welded stainless steel wire mesh with the following specs:
1 inch x 1 inch square mesh
Wire gauge: 19 BWG (1.06 mm in diameter)
Material: 304 grade
In rolls of 40”x100’

6), 3/4 x 3/4" welded stainless 304 mesh
Details: 0 .063(1.6mm) wire. opening .687"(17.4mm)
Dimensions: 5.5"(7 squares) x 11.5"(15 squares).

7) Rolls of 4'x100' Welded Wire Mesh
Details: 1x1 mesh
Material: 304 Stainless
Wire diameter: 0. 063"

Welded Wire Mesh can be supplied in cut panels:

Panels of welded wire mesh as follows:

Material: Stainless Steel type 304
Gauge: 16 gauge (0.063")
Pitch: ½" x ½"
Panel size: 16.5" x 16.5" nominal.
Panels to be cut with a smooth finish.

Stainless steel welded wire mesh cut into panels for processing of cages:
Square hole: 1/2"x1/2" opening
