Woven Mesh Discs

Stainless Steel Woven Mesh Discs - 5 Micron, 10 Micron, 20 Micron and More

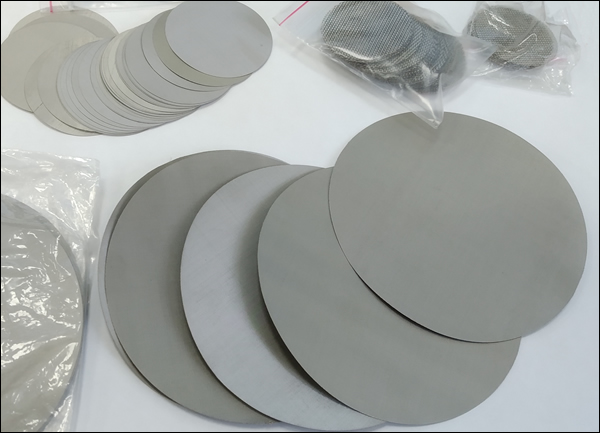

Stainless steel woven mesh discs are popular filter screen fabricated from micron woven wire mesh into circular shape to suit specific filtration conditions. Woven mesh discs can be supplied in a wide range of woven mesh apertures and disc diameters as following. Customized specifications available for customers choice.



Woven Mesh Disc, 5 Micron

Stainless Steel Woven Mesh Discs,325/2300 Mesh,Aperture 5 micron, Disc Diameter 46.9 mm
Mesh discs specification:
Woven Mesh: 325/2300 Mesh, Wire Diameter (mm) 0.035/0.025, Aperture 5 micron
Filtration: 5 μm
Disc Dia 46.9 mm
Material: Stainless steel



Woven Mesh Discs, 10 Micron
Mesh discs specification:
Woven Mesh: 250/1400 Mesh, Wire Diameter (mm) 0.055/0.04, Aperture 10 micron
Filtration: Aperture 10 μm
Disc Dia 46.9 mm
Material: Stainless steel



Woven Mesh Discs, 10 Micron
Mesh discs specification:
Woven Mesh: 250/1400 Mesh, Wire Diameter (mm) 0.055/0.04, Aperture 10 micron
Filtration: Aperture 10 μm
Disc Dia 101 mm
Material: Stainless steel



Woven Mesh Discs, 20 Micron
Mesh discs specification:
Woven Mesh: 120/1000 Mesh, Wire Diameter (mm) 0.08/0.055, Aperture 20 micron
Filtration: Aperture 20 μm
Disc Dia 101 mm
Material: Stainless steel



Woven Mesh Discs, 550 Micron
Filter fabric: Stainless steel woven mesh
Mesh discs specification:
Filtration: 550 μm
Disc Dia 37.8 mm
Material: Stainless steel



Woven Mesh Discs, 550 Micron
Mesh discs specification:
Woven Mesh: 30 Mesh, Wire Diameter (mm) 0.3, Aperture 550 micron
Filtration: 550 μm
Disc Dia 39 mm
Material: Stainless steel



Woven Mesh Discs, 550 Micron
Mesh discs specification:
Woven Mesh: 30 Mesh, Wire Diameter (mm) 0.3, Aperture 550 micron
Filtration: 550 μm
Disc Dia 88.8 mm
Material: Stainless steel



Flat Woven Filter Disc
Ø.500" (Ø 12mm) flat woven mesh filter disc
Application: For carbon dioxide flow
Material: Stainless steel



More references of Woven Mesh Filter Discs:
Mesh discs sizes
Woven mesh disc detail technical specifications
