ISO 3310 Woven Wire Mesh - Stainless Steel Sieving Mesh

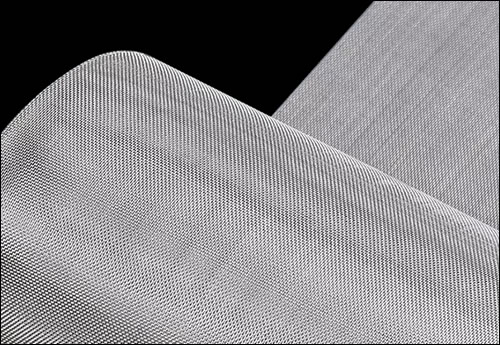

ISO 3310 Woven Wire Mesh is a wire woven mesh in square holes used for particle sieving and material testing, made with precision openings and minimum tolerances requirement per ISO3310 standard.



Woven wire mesh ISO 3310 for Particle Testing Sieves

Square woven wire mesh for particle sieving screen
Hole shape: Square
Type: Woven



Wire mesh precision requirement per ISO3310

Mesh opening Opening tolerance   Wire diameter wire diameter tolerance
  +X ±Y +Z STD Deviation prerefered dmax dmin Unit
(mm)       (mm)
80mm 2.915 2.13 2.80 6.30 7.20 5.40 mm
63mm 2.443 1.69 2.29 5.60 6.40 4.80 mm
56mm 2.240 1.50 2.08 5.00 5.80 4.30 mm
50mm 2.060 1.34 1.89 5.00 5.80 4.30 mm
40mm 1.748 1.08 1.57 1.000 4.50 5.20 3.80 mm
31,5mm 1.467 0.86 1.29 0.907 4.00 4.60 3.40 mm
28mm 1.345 0.76 1.17 0.801 3.55 4.10 3.00 mm
20mm 1.052 0.55 0.89 0.575 3.15 3.60 2.70 mm
14mm 0.811 0.39 0.67 0.413 2.80 3.20 2.40 mm
10mm 0.636 0.28 0.51 0.307 2.50 2.90 2.10 mm
6,3mm 0.456 0.18 0.35 0.207 1.80 2.10 1.50 mm
5mm 0.387 0.14 0.29 0.171 1.60 1.90 1.30 mm
2,5mm 0.238 0.07 0.17 0.098 1.00 1.15 0.85 mm
