Stainless Steel Conveyor Belt Mesh for Draining, Conveying, Cooling, Filtering

As conveyor belt suppliers, Hehua produces and exports Stainless Steel Wire Mesh Conveyor Belting products made of prime quality stainless steel wire / rod / strip / plate materials in a wide range of material grades, structures and sizes. The mesh fabric or coil can be woven mesh, grid, perforated screen or linked grid. The durable and corrosion resistant metal conveyor belt mesh are widely used as conveying belt, dryer belt, furnace belt, baking belt, oven belt, draining belt in various conveyor systems.

Standard conveyor belts and customized conveyor belts
We supply modular and customized wire mesh conveyor belts produced according to customers' requirement, exported to Italy, USA, UK, Singapore, Pakistan, India, and many other countries.

We supply both straight conveyor belt mesh and curved belt to suit different conveyor designs.

Metal Conveyor Net Material:
Stainless steel wire, high carbon steel, medium or low carbon steel wire, galvanized steel, alloy wire, polyester fiber, pvc, etc.

Stainless Steel Material for Mesh Conveyor Belts:

AISI 316:Offers higher corrosion resistance than 304, especially against chlorides; ideal for harsher environments.

AISI 304: Widely used stainless steel suitable for most industries.

AISI 310: High chromium and nickel content, similar to SS 314, but with a slightly different balance, leaning more towards nickel. Offering excellent high-temperature properties, but slightly lower maximum temperature resistance compared to SS 314.

AISI 314:High-temperature furnace and oven conveyor belt uses.

AISI 430:Ferritic stainless steel, used for mildly corrosive environments and not as robust as 304 or 316.

AISI 321:Similar to 304 but includes titanium, making it more resistant to intergranular corrosion.

AISI 302: Supplied at request.

Application:

Wire mesh conveyor belt is widely used in metallurgy, food machinery, chemical, pharmeceuticals, and other industries. Used in conveying, heat treatment, drying, cooling, food canning, preparation, bakings, freezing, drying, sorting, assembling, packing, part transfer, and various material handling, steaming, filtering, sludge draining, printing, and other processings.

Benefits:

Stainless steel mesh conveyor belts have high strength; excellent heat and corrosion resistant property; flexible and enduring; easy replacement of damaged or worn sections; easily cleaned; a smooth and flat conveying surface; quick drainage.

Belt structure:

Eyelink to eyelink
Modular structure with one or more welded underwires
With flattened eyes for small opening
Loop wire belt
Balanced weave conveyor belt
Double balanced weave
Rod reinforced

Wire mash conveyor belt major types:

Flat Wire Conveyor Belts

Balanced Weave Conveyor Belts

Compound Weave Conveyor Belts

Rod Reinforced Conveyor Belts

Chain Driven Conveyor Belts

Spiral Conveyor Belts

Ladder Conveyor Belts

Double Balanced Conveyor Belts

6 Mesh Woven Conveyor Belt

Turning Table Conveyor Belt

Conveyor Mesh Triple Winding

Diamond Mesh Conveyor Belt

Dutch Weave Mesh Belt ( Cable and Wire)

Wire Mesh Conveyor Belt Products and components - Photos, Detail SpecificationS, Export Markets

Wire Mesh Conveyer Belt, Temperature up to 1000° C 01
Exported to Pakistan
Welded Edges
Specification

Description of Stores
Wire Mesh Conveyor Belt(Imported)
To with stand temperature upto 1000 °C
Length: 35 Meter
Width: 600mm
Pitch of Spiral: 11-12mm
Spiral Wire Dia: 2.6-3mm
Crossed Spacing: 12-13mm
Crossed Wire Dia: 3.4 ± 2mm
Weight: 19.5 kg/m2
(As per Mint Sample)

Specification:
Nickle: 34-37%
Chrome: 18-21%
Manganese: 0.8-1.5%
Remainder: Iron

NB:
- Should be welded edges
- Mill Test certificate will be required with
The consignment as well as along with the bill/Claim

Wire Looped Flat Conveyor Belt
Supply wire belt to replace our client's old metal conveyor belt

Old belt as below:
48/in x .050”.
Width 12”.
OAL of the conveyor 3m from end to end.

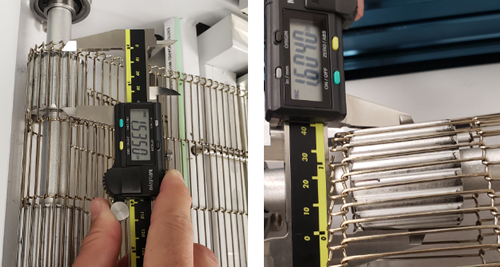

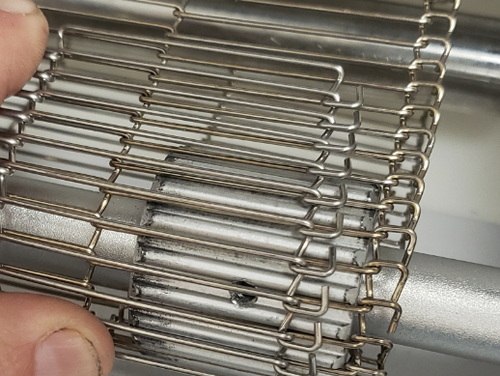

Photoes from customers:

Flat wire loop belt

Size detail:

Length of wire rod

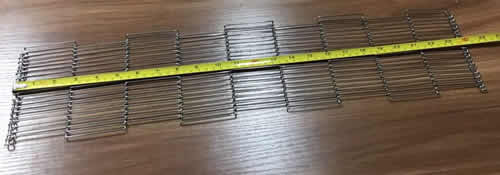

Customer needed ladder belt with samilar sizes

Honeycomb Flat Wire Belt
Flat belt
Material: Galvanized Steel
Mesh: 1"×1" mesh

Edge: Clinched edge

Mesh options:
1x1/2" mesh
1/2"x1/2" mesh

Edge options: Welded edge

Spiral Conveyor Belt
Type: Weaving mesh belt
Size of belt
1650mm width
Length 1400mm

Teflon Covered Mesh Grid for Conveyor

Our Ukraine client ordered Metal Grid for conveyor with the following requirements:
Cell size - from 0.5
х0.5 mm to 1.0х1.0mm
Mesh finish: Treated with Teflon.
Structure: Metal conveyor net connected to a metal lock.
Purpose: Polymeric material to be transported on the grid.
The material will be blown with hot air with a temperature of 240 degrees.
Shaft size 40mm.
The size of the grid  49000mm x 1150mm.

Mesh Conveyor Belt for Food Industry Fruit Bottles

Our client in USA ordered mesh conveyor belt to replace current conveyor belt with a mesh type.
Client Requirement:
Wire mesh belt is used to run 2oz bottles standing up through heat shrink tunnel with best possibility of standing upright.
Max temperatue 250C.
Must be metal mesh.  Please tell me the best type of mesh to use.
Mesh belt length is 78” and the width outside chain is 9”, inside width is 7 7/8”, center to center is 8 7/16”  Link is ½”.
Linked mesh belt for Fruit companies

Stainless Steel 304 Mesh Belt for Dryer Oven

Purpose: For pet dog food production
Technical specifications :
Mesh size: Fine mesh in smallest size
Mesh thickness : 1 mm
Mesh width : 1000mm
Mesh length : 56m
Chain No : ANSI 50

Stainless Steel Furnace Belt
Requirement: The metal belt nets can withstand high temperatures.
for USA customers

SUS 316 Mesh Conveyor

Mesh conveyor belt length: 15m
Material: SS316 material.
Wire diameter 1mm
Mesh belt width: 1.6m
Pitch 5mm
Vertical pitch 8mm

We supply samilar mesh conveyor belt to our client in UAE.

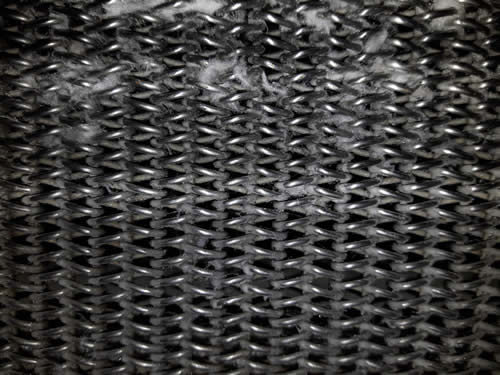

Our client currently uses following types:
Stainless steel 316 mesh conveyor belt

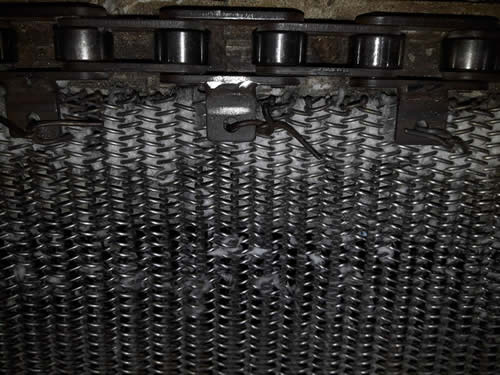

Edge requirement for the mesh belt: Chain and Guard plate

Ladder Mesh Belt for Food Industry


Wire Mesh Conveyor Belt for Malaysia Manufacturing plant of fish ball, material: Stainless steel 304

Wire Mesh for Biscuit Transfer Baking Oven

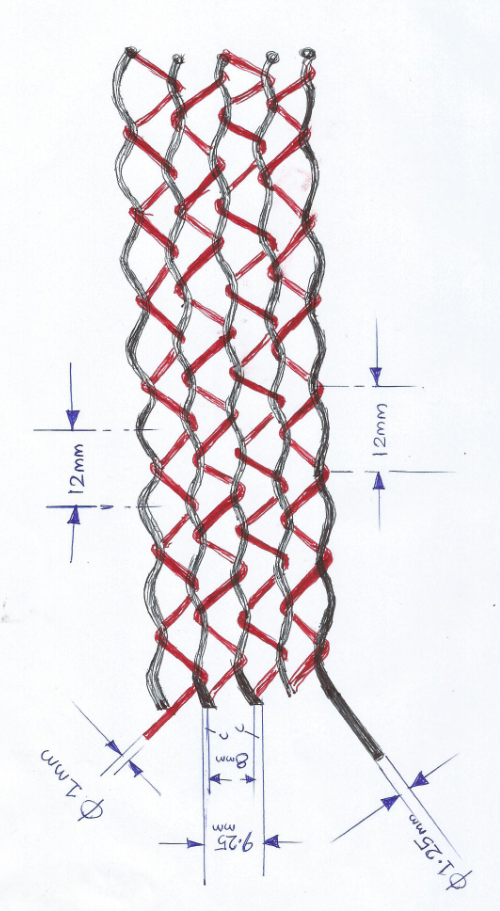

Drawing reference from our client:

Wire diameter: 1mm, edge wire diameter: 1.25mm, mesh 8mm,



Stainless Steel Wire Mesh Belt Conveyor 310 and 304 Grade

Exported to Philipines for various industries: food, beverage, carrageenan, flour, sugar, aggregates, mining, bakery
Material: SS 310, 304

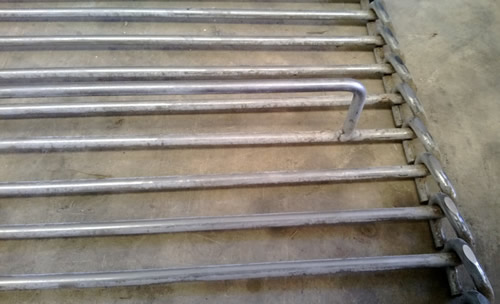

Heavy Duty Wire Belt, Exported to Australia

Stainless steel Conveyor belt
9.760 m x width 610mm from edge of link
Pick up links stand up 40mm, welded to a standard link
Distance between rods 25mm centre of rod to centre.

Australia client requiring heavy duty wire belt to replace the current belt they use:



20 Mesh Stainless Steel Conveyor Belt
Exported to Canada

20Mesh stainless steel wire mesh belt for conveyor system
Conveyor between 4 to 6 feet wide, and 60 feet in length.
Purpose: Light type product
Speed of the conveyor: 1 foot per minute.


Wire Belt for Food Plant Dewatering
Exported to USA
Client requirement:
Food grade stainless wire conveyor belt
30” wide and 124” between the 6” roller outer surfaces.
Belt 256” length
Idler roller with 3” of adjustment.
Mesh spacing between 2” to 3/8”.
Purpose: Dewatering cooked meat patties before packaging.

Stainless Steel Conveyor Continuous Belt

Type: CONVEYOR CONTINUOUS BELT
Purpose: Wood processing industry
Material: Nicro 52.6 / Nicro 62.5 stainless steel
Belt length: 32.600 mm. +/- 50 mm.
Belt width: 2.650 mm +/- 2 mm.
Belt thickness: 2,0 mm +/- 0,2 mm.
Joint: Duplex (BI-lateral ) Welding at 80° angle
Surfaces: Polished to G-4.0
Exported to UK

Stainless Steel Wire Mesh Belt Conveyor
Wire mesh material- Stainless steel SUS304
Conveyor length- 4300mm

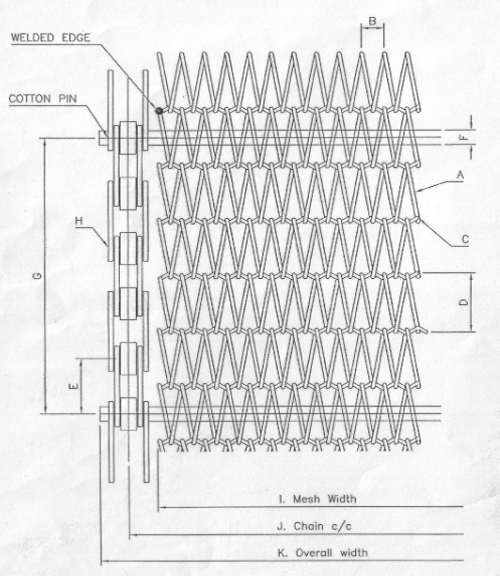

Please refer the attachment file for detail spec.

A. Wire Diameter Ø2.3 mm
B. Spiral Pitch 12 mm
C. Rod Diameter Ø2.3 mm
D. Rod Pitch 15.875 mm
E. Chain Pitch 15.875 mm
F. Support Diameter Ø6 mm
G. Support Pitch 158.75 mm
H. Chain Model RS 50
I. Mesh Width 350 mm
J. Chain C/C 373 mm
K. Overall Width 400 mm
L. Total Length mm
M. Material Mesh SUS 304
N. Material Chain Mild Steel

Exported to Malaysia

Stainless Steel Belt Conveyor for Aluminium-sulphate Melt

Type: Stainless steel conveyer belt for transport of aluminium-sulphate
Thickness of melt from 5 to 15 mm
Max temperature of aluminium-sulfate on belt: 80-120 degrees celsius
Belt width: 1200 mm
Belt lenght: 30 m (axial length approximately 14 m)
Pulley diameter 520 mm
Exported to Serbia

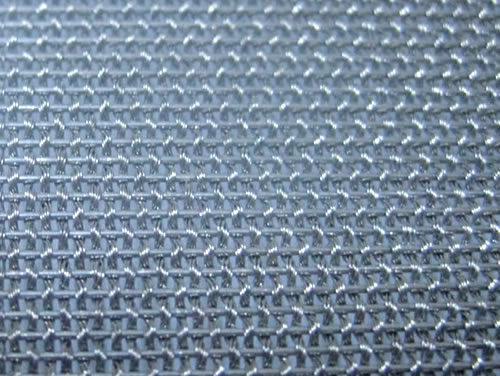

Stainless Steel Woven Mesh Belt

SS Mesh Belt for India client
Sizes: Stainless Steel Woven Mesh Belt Width: 2.4 Meter.
The warp wire: Cable Wire 0.5 MM
The weft wire: rod bar 0.35 MM
Mesh aperture: 0.6 MM
Mesh size 20 mesh.

Each Conveyor Size:
Length: 11 meter
Width 2.4 meter.
Edge end: welded

Plaques Link Belts

Plaques Link Belts specially designed stainless steel conveyor belts tailored for specific uses.
Uses: Mechanical and automotive sectors, foundries, and forges.

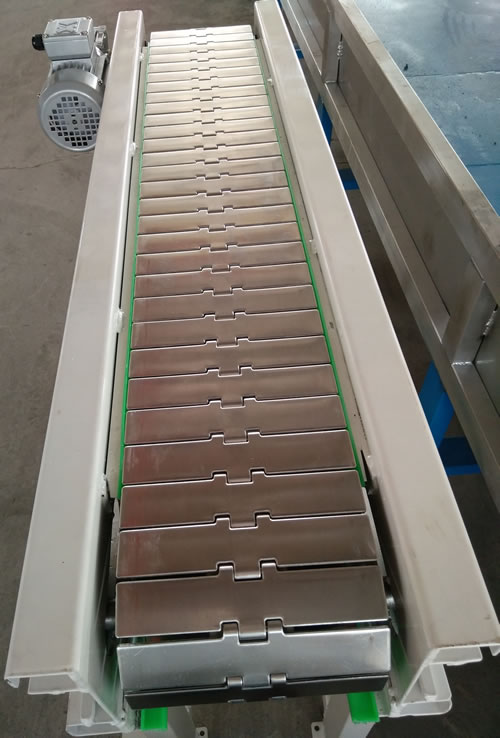

Solid Band Conveyor Belt

Conveyor Belts for Automotive Industries
For sorting
For material handling
For floor platform conveyors

Wire Belt for Rubber Tire Industries
Roller conveyor mesh belt
Mesh belt for roller conveyors system
Belt Driven Conveyor Belts
Weigh conveyor belt

Accessories and parts supplied with metal conveyor belts:

Pulleys
Drive Pulleys
Tail Pulleys
Idler Pulleys.

Metal Sprockets
Drive Sprockets: Engage with the conveyor belt to transmit power from the drive shaft.
Idler Sprockets: Used for changing direction of the chain or belt and for tensioning purposes.

Chains
Roller Chains: Chain-driven conveyor systems, used to transmit power to the rollers.
Attachment Chains: With attachments for specific material handling requirements.

Chain driven stainless steel woven mesh
Balanced weave mesh conveyor belt in ss304

Solid steel plate conveyer belt
Flat wire conveyor belt honeycomb type



Specification Lists:

Mesh Diameter
(mm)
Other Mesh Diameter
(mm)
Other Mesh
NO./M
Mesh
NO./M
4 6 33(radix) 40(circle)
3.5 3.5 33(radix) 40(circle)
2.8 2.8 52(radix) 60(circle)
2 2 57(radix) 71(circle)
2.8 2.8 72(radix) 80(circle)
2.8 3 92(radix) 100(circle)
2.8 2.8 105(radix) 118(circle)
2.8 2.8 60(radix) 138(circle)
1.6 1.6 72(radix) 80(circle)
1.6 1.6 105(radix) 118(circle)
1.6 1.6 125(radix) 138(circle)
1.6 1.6 158(radix) 158(circle)
1.2 1.2 92(radix) 100(circle)
1.2 1.2 105(radix) 118(circle)
1.2 1.2 92(radix) 138(circle)
1.2 1.2 158(radix) 158(circle)
0.9 0.9 158(radix) 158(circle
