Spiral Weave Wire Mesh Conveyor Belt - 304, 316, 310，430, T303 Stainless Steel Conveyor Belt Spiral Type for Transport and Transfer -Material

Stainless Steel Conveyor Belts Spiral Weave Wire Mesh can be made of AISI 304, 316, 310, 430 stainless steel, also T303 grade ss upon request.

Spiral weave mesh belts provide the necessary strength, corrosion resistance, and durability required for the demanding conditions of conveyor systems, suited for continuous operation under various environmental conditions, including exposure to harsh chemicals, extreme temperatures, and heavy mechanical wear.

Wire types: Spiral woven wire belt can be made with round spiral wire, or flat spiral wire

Range of spiral weave wire mesh belts:
Balance Spiral Woven Mesh Belts: Balanced spiral mesh belts are made with alternating right- and left-hand spirals joined by crimped or straight connecting rods. With straight tracking and smooth surface, this mesh belts are ideal for transportation of small and medium-sized products.

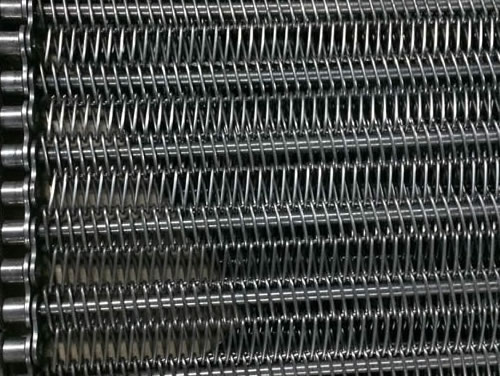

Chain Driven Spiral Weave Mesh Belts: The chains provide added strength and ensure positive drive, making the metal belts suitable for conveying heavy loads or for use in high-temperature environments.

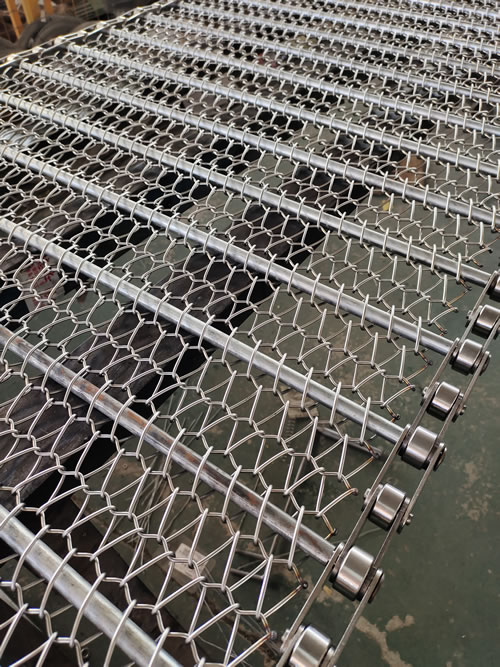

Diamond Spiral Mesh Belt: Chain link spiral mesh forming a diamond mesh pattern, also known as Diamond Mesh Conveyor Belt.
Rod Reinforced Spiral Weave Mesh Belts: These belts are reinforced with rods for extra strength and rigidity, often used in applications that require a high degree of stability and support for heavy or uneven loads.
Duplex Spiral Weave Conveyor Belts: Close mesh design with high-density spirals, duplex wire belts are suitable for carrying small parts and other items where minimal contact with the belt surface is desired, like washing, drying, and cooling.
Turn Spiral Weave Belts: Specially designed for systems with curves and turns, these belts maintain belt alignment and provide smooth operation in directional changes.
Compact Grid Spiral Mesh Belts: These belts have a tightly woven spiral construction, which provides a high tensile strength and is suitable for high-pressure washdowns. They are often used in food processing applications.
Heavy-Duty Spiral Belts: Made for the toughest applications, these belts are designed to handle heavy loads and high temperatures, making them suitable for metalworking, forging, and foundry operations.

Processing & Structures:
Material Types: Constructed from materials like stainless steel, carbon steel, and other alloys, the belt is tailored to withstand various environmental conditions.
Side Chains Options: The belt includes side chains which can be customized in materials and designs, providing additional support and alignment.

Connection Rods:
Edge Options: Edges are reinforced to prevent fraying and damage, with options for welded, looped, or other reinforced edges.
Parts Options: Additional parts like cleats, guides, and flights are available to enhance the functionality of the belt.

Major Applications:
Food Processing: Ideal for baking, cooking, and freezing operations.
Industrial Manufacturing: Suitable for product handling, assembly lines, and packaging.
Pharmaceuticals: Used in drug production, ensuring cleanliness and precision.

Spiral Woven Mesh Belts Products
We supply spiral weave wire mesh belt, with custom sizes, grades, pitch sizes and weight of the products, available in various mesh configurations, suitable for various environment (temperature, exposure to chemicals, etc.), and for specific process requirements (such as drying, cooling, or washing).

Custom wire mesh conveyor belting spiral weave for Nigeria

Product description: Stainless Steel Wire Braided Conveyor Belt Spiral Mesh
Belt specification
Width: 1200mm
Top cover 8mm
Bottom cover 4 mm
Ply 4 nos with SS cord
Thickness 16mm

Spiral Type Stainless Steel Conveyor Belt, SS Grade 430

Stainless steel conveyor belt spiral woven
Material Type STAINLESS STEEL 430

Conveyor belt model 1:
Width: 300mm, 3 Spiral pitch
Spiral pitch 100mm
Rod Pitch 7mm
Wire Diameter:2mm

Conveyor belt model 2:
Width:440mm, 4 Spiral pitch
Spiral pitch 110mm
Rod Pitch 7mm
Wire Diameter:2mm

Conveyor belt model 3:
Width: 600mm, 6 Spiral pitch
Spiral pitch 100mm
Rod Pitch 7mm
Wire Diameter:2mm

SS304 Spiral Weave Wire Mesh Belt ( Wire Braided Balanced Weave), for Food Industry

SS Grade: 304 Stainless Steel
Mesh type: Balanced weave
Rod: Reinforced steel rods for added strength
Weave: Spiral weave
Chains: Stainless steel side chains for stability
Edges: Welded edges for durability
Specific Application: Ideal for high-temperature cooking processes.

Stainless Steel 316 Spiral Weave Mesh Belt, Looped Edge, Curved Belt
SS Grade: 316 Stainless Steel
Mesh type: Dense mesh for fine particles
Rod: Hollow rods for lightweight operation
Weave: Flexible spiral weave for curved conveyors
Chains: Alloy chains for chemical resistance
Edges: Looped edges for safety

Specific Application: For chemical and corrosive environments.

Stainless Steel 310 Spiral Weave Flat Belt
SS Grade: 310 Stainless Steel
Mesh: Large openings, easy cleaning
Rod: Solid rods for heavy-duty operations
Weave: Flat surface weave for stable movement
Chains: Carbon steel chains for added strength
Edges: Reinforced edges

Specific Application: Baking and cooling operations in food processing.

T303 Stainless Steel Spiral Mesh Conveyor Belt

Materials: T303 stainless steel.
Sprockets: Available in various sizes and can be custom-made to specific customer needs.
Mesh type: Balanced sprial weave

Features
Material: T303 stainless steel offers strength and durability.
Belt Design: Features an open balanced weave, facilitating even and gentle handling of products.
Drive System: Incorporates a belt and sprocket system, ensuring accurate and consistent product transfer.
Customizable Sprockets: Standard sprockets are available, with the option to manufacture special size sprockets tailored

Uses: T 303 Stainless Steel Mesh Belt is more commonly used in applications where easy machining is crucial, where corrosion resistance is important but less critical, mainly in Food Processing and Continuous Operation.
