Wire Mesh and Netting, Welded, SSl 304, 316

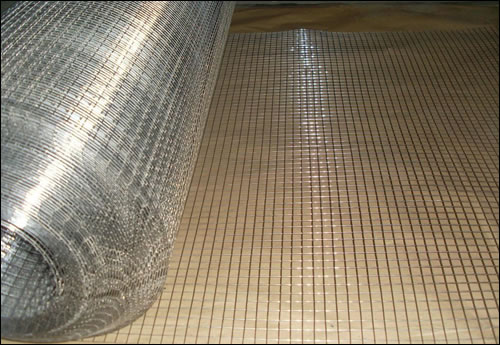

Stainless Steel Welded Mesh Rolls and Panels

We produce welded wire mesh in ss grade 304, 316 and 316L. Sizes and specifications can meet customers' requirements.

Stainless steel welded mesh offers better corrosion resistance compared with galvanized welded iron wire mesh, while the cost is higher. It is utilized as fencing panels and guards. Stainless steel 316 welded mesh can be used for marine construction projects. Powder coated stainless steel welded mesh hardware cloth is mainly used for securing of windows and doors.

Extra wide stainless steel wire mesh rolls ( 2.50 meter and other width ) can be supplied upon request.



Popular Commodities Shipping Abroad



3/4 x 3/4 inch Welded Stainless 304 Mesh
Welded mesh .063(1.6mm) wire. opening .687"(17.4mm)
Dimensions 5.5"(7 squares) x 11.5"(15 squares).
Trimmed edge solid wire around outside, no sharp points.



SS Welded Wire Mesh Delivery to Doha,  Qatar
SS Welded Mesh as specified in below specifications:
Stainless-steel welded mesh, in sheet / panel form
Wire diameter: 3.0mm
Aperture/mesh size: 25 mm x 25 mm square opening
Material grade: SS 316
Sheet panel height : 800mm
Sheet panel length : 800mm



Stainless steel wire mesh, welded
Shipping to Sweden
Mesh: 1/2"x1/2"
Wire diameter: 1.05 mm
Roll width: 0.6 m
Length: 4.5 m



Construction wire mesh
Mesh: 25x25, 50x50
Wire: 1mm
Material : Stainless Steel 316



Welded Galvanized Steel Wire Fabric
50mm x 50mm square mesh, electrically welded
Galvanized wire mesh for concrete reinforcement
Mesh: 50x50mm
Wire diameter:3.25mm
Sheet size: 3.60 m x 2.10 m


Stainless steel wire netting
Material: Steel Wire to ASTM, A240
Opening: 304 Square Mesh
Sheet or roll: in sheets of 5x1 Meters
Processing: Electrically welded, butt welding
Mesh Size 50x50mm 2x2 inch
Diameter of Wire 0.120 inch

Stainless steel 304 welded mesh Panels
10 mm square bars welded with a 60 mm x 40 mm aperture
Panel size: 3 meters x 1.6 meters



Stainless Steel Welded Wire Roll, Shipping to USA
Opening size 6.4mm x 6.4mm
Wire gauge: 22 wire diameter
Roll width: 2.50 m



Stainless Steel Welded Mesh, Shipping to Spain
316 Grade, Aperture size 1.31 mm, with 0.28 diameter wires, minimum width 1m, 16/ inch, used as bird and insect-proof mesh



316L Stainless Steel Electroformed Mesh
Shipping to UAE.
as follows:
316L Stainless steel electroformed mesh (Single monolithic)
Thickness: 0.25 mm
Holes spacing size: 5 mm x 3mm
Size: 2m x 2m



316L Stainless steel electroformed mesh
Thickness: 0.25 mm
Holes spacing size: 1 mm spacing
Size: 2m x 2m



Electro welded stainless steel wire mesh, shipping to USA
Specifications:
Material: 304 stainless steel wire
Wire diameter: 2mm
Hole size: 1"x1" (25.4x25.4mm)

304 stainless steel wire welded wire mesh
Stainless 304 welded mesh rolls, one inch x one inch squares, 19 BWG
1.06 mm diameter or 2mm, in rolls of 40”x100’ or 1x30m



Black Coated SS Welded Mesh

18" width black pvc coated stainless steel welded wire hardware cloth, mesh 1" by 1/2", 100' roll, 16 or 14 gauge, for window security fly screen



Stainless Steel Welded Mesh Grade 304, Shipping to Thailand
Mesh Size 25x25 (1"x1")
Wire Diameter 3mm (11 SWG)

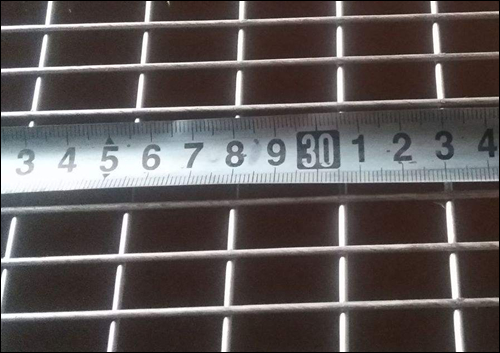

Stainless Bar Welded Mesh Panels

Reinforcing Mesh Sheet
Rectangular Hole Mesh Sheet for Construtional Reinforcement



STAINLESS STEEL WELDED MESH for construction project

Shipping to New Zealand
Application: Construction of External Wall Body as Rock Reinforcement Bucket Part
Wire Diameter for Welded Stainless Steel Bar Wire Panels 8mm or 9mm
Stainless Steel Welded Bar Panel Opening 100mm x 100mm Square
Stainless Steel Welded Bar Panel Length 2400mm
Stainless Steel Welded Bar Panel Width 1200mm
Stainless Steel Grade 304ss

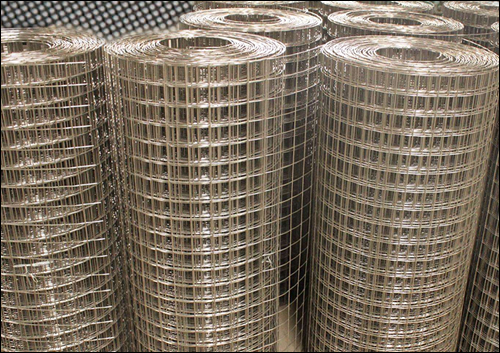

SS Welded Mesh, Grade: SS 316

Stainless Steel 316 Grade Welded Mesh Sheet
STAINLESS-STEEL WELDED MESH in sheet/Panel Form, Products shipping to Qatar, Specifications:Wire Dia: Ø 3.0mm
Aperture/mesh Size: 25 mm x 25 mm square opening
Sheet Panel Height : 800mm, Sheet Panel Length : 800mm



316L Stainless Steel Welded Wire Mesh in 100 feet roll

SS316L Grade Square Opening Stainless Steel Welded Mesh
¾” stainless steel welded wire mesh (square opening), SS316L grade, 18# or 19# gauge, in 1.8m width and 100-foot rolls, mesh: ¾”, 1" x 1", 1” x 2”, 1/3” x 1/3”

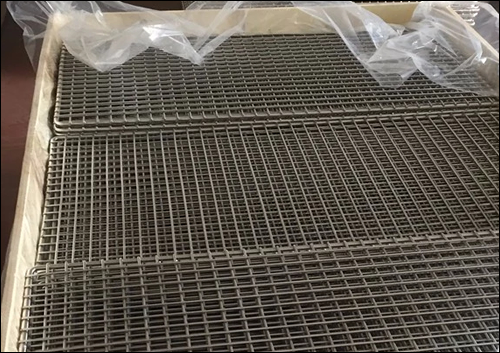

304,316,316L ss welded mesh processed into mesh baskets and trays

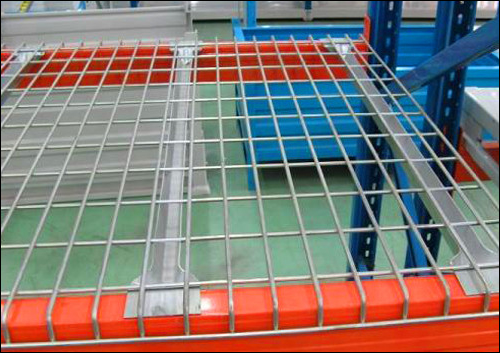

Mesh decking panels



Welded Mesh, Square Opening

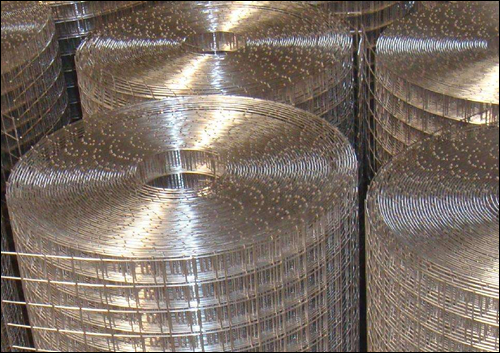

Square Opening Welded Mesh Rolls
Welded Mesh, wire diameter 1.20mm (18 BWG), open square 6.00mm.
Welded Mesh, wire diameter 1.60mm (16 BWG), open square 6.00mm.
Roll size: Length 100 feet, width from 4 feet to 5 feet.



Stainless Steel Welded Wire Mesh Panels
Wire Mesh, Square Welded, Stainless Steel Type 304,
Welded Construction, 2 Mesh, 0.047'' Wire Diameter, 82% Open Area
Panel size: 48.0'' width x 48.0'' length.



SS 304 Weld Mesh Sheet
Square opening wire mesh:
1 inch x 3mm wire x 1200 mm (Width) x 15 m

Specification List of Stainless Steel Welded Mesh

Mesh
Wire Diameter
In Inch
In MM
Wire Gauge
In MM
1/4" x 1/4"
6.4mm x 6.4mm
22#-24#
0.7mm-0.6mm
3/8" x 3/8"
10.6mm x 10.6mm
19#-22#
1.0mm-0.7mm
1/2" x 1/2"
12.7mm x 12.7mm
16#-23#
1.6mm-0.6mm
5/8" x 5/8"
16mm x 16mm
18#-21#
1.2mm-0.8mm
3/4" x 3/4"
19.1mm x 19.1mm
16#-21#
1.6mm-0.8mm
1" x 1/2"
25.4mm x 12.7mm
16#-20#
1.6mm-0.9mm
1" x 1"
25.4mm x 25.4mm
14#-21#
2.0mm-0.8mm
11/2" x 11/2"
38mm x 38mm
14#-19#
2.0mm-1.0mm
1" x 2"
25.4mm x 50.8mm
14#-16#
2.0mm-1.6mm
2" x 2"
50.8mm x 50.8mm
12#-16#
2.6mm-1.6mm
