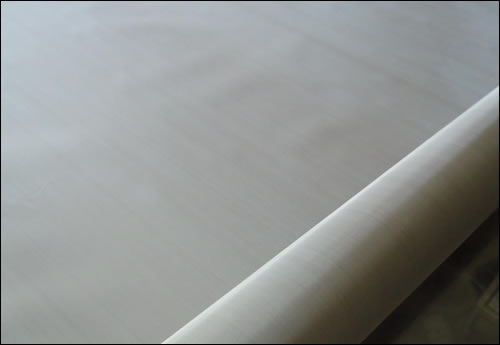

Stainless Steel Wire Mesh, Plain Woven

Plain Woven Stainless Steel Wire Mesh is woven with each warp wire going over and under the successive weft wires and vice versa ensuring the maximum of weaving stability and most accurate mesh openings.Standard mesh counts per inch for stainless steel wire mesh, plain woven:

2mesh/3mesh/4mesh/5mesh/6mesh/8mesh/10mesh/12mesh/14mesh/16mesh/
18mesh/20mesh/26mesh/30mesh/40mesh/50mesh/60mesh/70mesh/80mesh/
90mesh/100mesh/120mesh/150mesh/160mesh/180mesh/200mesh/250mesh/
300mesh/325mesh/350mesh/400mesh/



mesh/inch

wire diameter
mm

aperture
mm

 -

mesh/inch

wire diameter
mm

aperture
mm

2mesh

1.80

10.90

60mesh

0.15

0.273

3mesh

1.60

6.866

70mesh

0.14

0.223

4mesh

1.20

5.15

80mesh

0.12

0.198

5mesh

0.91

4.17

90mesh

0.11

0.172

6mesh

0.80

3.433

100mesh

0.10

0.154

8mesh

0.60

2.575

120mesh

0.08

0.132

10mesh

0.55

1.990

140mesh

0.07

0.111

12mesh

0.50

1.616

150mesh

0.065

0.104

14mesh

0.45

1.362

160mesh

0.065

0.094

16mesh

0.40

1.188

180mesh

0.053

0.088

18mesh

0.35

1.060

200mesh

0.053

0.074

20mesh

0.30

0.970

250mesh

0.04

0.061

26mesh

0.28

0.696

300mesh

0.035

0.049

30mesh

0.25

0.596

325mesh

0.03

0.048

40mesh

0.21

0.425

350mesh

0.03

0.042

50mesh

0.19

0.318

400mesh

0.25

0.0385

Technical Note:

1, Standard roll width of stainless steel wire mesh: 1m or 48"
2, Standard roll length of stainless steel wire mesh: 30m or 100'
3, Material of stainless steel wire mesh: AISI 304 or 316



Stainless Steel Plain Wire Mesh, 304 (Nickle 8 Percent Min.)

304 Stainless Steel Mesh 200 Mesh, SWG 47
Stainless steel Plain Wire Mesh
Quality: 304- Nickle- 8% min.

Detail Specification of Plain Woven SS Mesh, 100 to 325 Mesh, with Wire Gauge and MM, Roll Size

Model Mesh Wire Diameter Roll Width Roll Length
SSPW-1 100 Mesh 42 SWG 0.102 mm 1.3m 30m
SSPW-2 120 Mesh 44 SWG 0.081 mm
SSPW-3 140 Mesh 45 SWG 0.070 mm
SSPW-4 165 Mesh 46 SWG 0.06 mm
SSPW-5 180 Mesh 47 SWG 0.050 mm
SSPW-6 200 Mesh 47 SWG 0.050 mm
SSPW-7 230 Mesh 48 SWG 0.040 mm
SSPW-8 250 Mesh 48 SWG 0.040 mm
SSPW-9 270 Mesh 481/2 SWG 0.035 mm
SSPW-10 300 Mesh 49 SWG 0.025 mm
SSPW-11 325 Mesh 49 SWG 0.025 mm
