Stainless Steel 316L Sintered Metal Fiber Felt - Filter Media for Discs and Pleated Filter Candles

SS316L sintered metal fiber felt is a high-performance pleatable filter media widely used for various filter elements processing. Sintered metal fiber felt is made of SS316L fine stainless steel fibers through high temperature sintering process.
Other metal alloy materials available for sintered metal fiber felt.

Features:
High dirt-holding capacity;
Anti clogging;
High pressure drop;
High-temperature resistance;
Corrosion resistance and high filtration accuracy;
Easy processing in various forms for filtration uses.

316L sintered metal fiber felt is supplied in various filtration ratings and forms:
Sintered fiber felt cut sheet;
Cut discs;
Pleated filter elements.

Uses:
Sintered metal fiber felt is popularly used in polymer filtration, petrochemical filtration, electronics industry, oil refining filtration, pre-filtration, fuel filtration and hydraulic system filtration.

Sintered Metal Fiber Media -40 Micron MOC SS316L

Stainless Steel Sintered Metal Fiber Media Sheet for manufacturing of candle filter elements used in polymer filtration
Material: SS316L
Sheet cut size : 1000 mm X L-650 mm (Tolerance -0/+5)
Micron Rating : 40 Micron.

Sintered Metal Fiber Felt Media -20 Micron MOC SS316L
Stainless Steel 316L Grade Sintered Metal Fiber Media Sheet for manufacturing of polymer candle filters
Sheet cut size : 970 mm X L-910 mm (Tolerance -0/+5)
Micron Rating : 20 Micron.

SS316L Sintered Metal Fiber Felt -30 Micron 390mm x 505mm
Filtration Rating: 30 Micron + 10%
Mean BPP : 1230 Pa + 10%
Air Permeability at 200 Pa : 500 L/min/dm2 + 20%
Porosity : 80% + 10%
Weight : 1050 g/m2 + 10%
Thickness : 0.62 mm + 10%
MOC: SS316L.
Cut Sheet Size : W-390 mm X L-505 mm (Tolerance + 5 mm /- 0 mm)

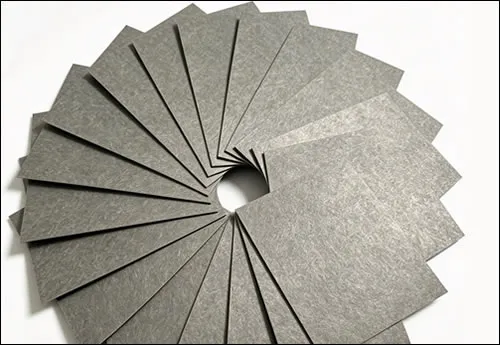

Sintered Metal Fiber Felt- 80 Micron 505 mm X 1070 mm
Sintered Metal Fiber Media Sheet
Pleatable sintered web for making filter candles for polymer filtration
Filter rating: 80 Micron
MOC : SS316L
Supplied in Cut sheet
Size: 505 mm X 1070 mm

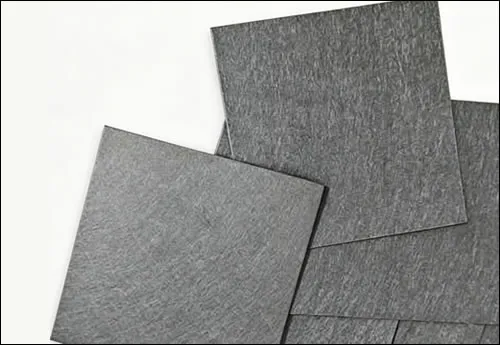

Stainless Steel Fiber Felt Filter Media-15 Micron x 0.4mm

Sintered ss nonwoven fabric cloth
Pore size: 15 um
Porosity: about 79%
MOC : Stainless Steel 316L
Thickness: 0.4 mm
Cut felt size: Lengh 1 m x Width 1 m

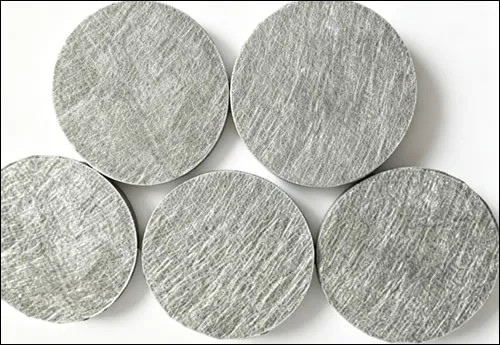

Sintered AISI 316L Fiber Felt Cut into Discs-Diameter 293 mm

Sintered fiber felt porosity: 82%
Material: AISI 316L
Shape: Cut to filter discs
Disc size: Diameter 293 mm x 0.7mm thickness
Supplied with Certificate of Material

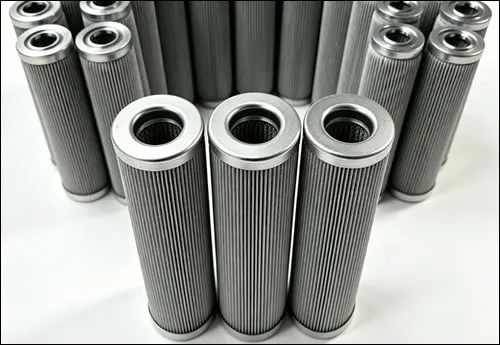

Porous Fiber Felt Filter Cartridge-SS 316L 3 Micron x 0.35mm

SS 316L Porous fiber felt filter cartridge
Filter candle structure: Sintered fiber felt pleated as filter media with inner support metal tube
Connected by welded rings
Outside protection perforated tube provided as optional
Material of filters: 316L
Temperature: 1050-1100 F
Pressure:  -10 to 17.5 psig
Average Air Permeability: (l/dm2/min): 9
Dirt Holding Capacity (mg/cm2): 6.40
Porosity: = 65%
Absolute rating: 3 (µm)
Bubble Point Pressure (Pa): 12300
Weight (g/m2): 975
Thickness (mm): 0.35

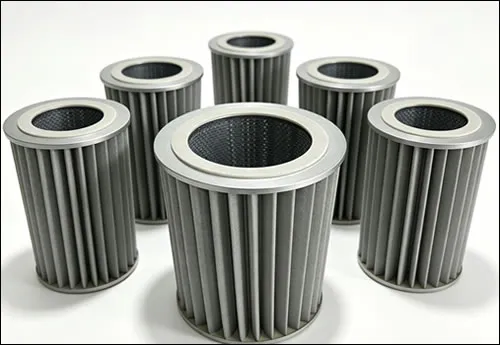

Sintered Metal Fiber Felt for Oil Filter Elements

Pleated oil filter element
Pleat length: 192mm
Element outside diameter: 68mm
Total OD: 71mm
Element length: 217mm
