High Tensile Woven Wire Screens, Hooked Flat Panels

High Tensile Woven Wire Screens are specialized hook screens designed for Mining and Crusher Plant Screen uses.

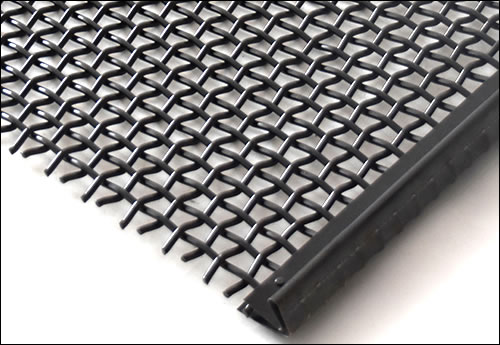

High Tensile Woven ( Carbon Steel ) Wire Screens - Mining Screens

( HOOK SCREEN )
Width : 1480 mm (without hook side)
Length : 1100 mm ( hook side )
hook length : 1000 mm

* General specification :
Hook angle : 30° , mesh size 4X4 mm
Wire diameter : 3 mm , Hook plates : 1 mm
Upper side of hook ≈ 30 mm, Lower side of hook ≈ 50mm
Woven Wire Screen Drawing

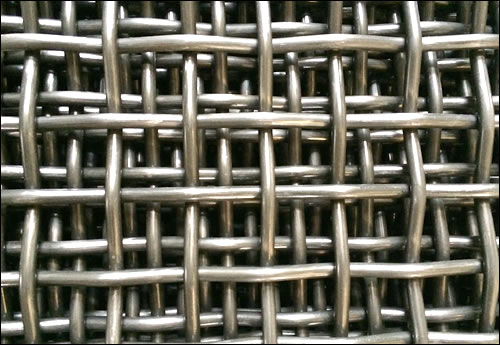

High Tensile Vibrating Crimped Wire Mesh

Screen Mesh for Vibrating Screen
Screen material : Steel wire
Wire diameter 6.5mm
Aperture 53.5 x 53.5 mm
Length: 2223mm
Width: 1094mm



Hook Strip Flat Screen

Hooked panel screen for sifting:
Hole size: 1/8” holes, ¼” holes, ½” holes



Woven Wire Screen with Hook Strip

Hooked panel size 1565 x 1000 mm.
Type: Double Intermediate Crimp Screen
Design: Standard hook strip
Material : Stainless Steel 1.4301
Mesh sizes: 5 mm x 1.25 mm x 6.25 mm

Wire diameter applied for high tensile woven wire screen for mining and crasher screens:
1 mm
1.5 mm
2 mm
2.5 mm
3 mm
4 mm
5 mm
6 mm
8 mm
10 mm
