304 and 316 Stainless Steel Wedge Wire

Stainless Steel Wedge Wire Screen Engineering and Supplying

Hehua is an experienced wedge wire engineering and manufacturing company. An industrial filter screen with special profile welded with v wire slots and precise filtration rating.

We are wedge wire screen supplier with following advantages:
- Expertise and experience
- Precise aperture and filtration rate
- Choice stainless steel materials
- Engineering capacity to meet special requirements
- Long term supplier to customers in Germany, UK, US, Singapore, Australia, India, Vietnam and much more countries.



PROJECTS AND MODELS



Wedge Wire

Model: Stainless steel wedge wire filter cartridge
Material: AISI 304
Size: Width 1.5 mm x height 2.5 mm
RM: 110 - 140 daN/mm2, V 20 or V 25
Market: Supply to German



Wedge Wire Screen for Pusher Centrifuge

Model: 316L Wedge wire cylinder for pusher centrifuge and evaporators
Material: SS316L
Size: OD192 x 120mm length
Slot: 0.08 mm
Profile Wire: 1x2mm
SR:2x3mm
Market: Supply to India



Wedge Wire to Manufacture Bespoke Screens

Model: 12.7 x 25.75 x 7mm Manganese Steel Wedge Wire
Material: Manganese steel
Size: Lengths from 750mm to 1500mm

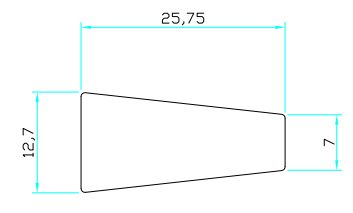

Profile as following:

Flat Wedge Wire Panels

Model: Flat stainless steel wedge wire panel with support rods
Size: 38” x 24” with 0.004” opening
Market: Supply to USA



Wedge Wire Rotary Drum Screen

Model: Rotary screen
Material: Stainless Steel SUS 304
Profile: V Wire
Size: 0.8mm x 2.5mm x 3.5mm
Market: Supply to Viet Nam

Technical datasheet attached: Mesh structure, profile and welding details.



Wedge Wire Cylinder

Model: Standard external circumferential screen cylinder
Type: V shape wire tube
Structure: V shape welded wire
Material: SS 304
Size: 2.5 inch x length 6 m
Market: Supply to Singapore



Wedge Wire Filter Cartridge

Model: Wedge wire filter candles
Construction: Wedge wire construction
Material: 316 stainless steel
Size: Filter element OD 25 to 26mm, L 590-600mm (including end cap for blind end) + fitting
Fitting: ½” NPT male hex
Filtration: 40 micron, 10 micron, 5 micron
Market: Supply to Australia

Technical datasheet attached.



Wedge Wire Filter Element

Model: Vertical vessel wedge wire filter elements
Project: Engineering Design and Supply of wedge wire filter element c/w vessel for cooling water treatment.
Vessel Type: Vertical

Market: Supply to Malaysia.

Technical datasheet attached, including design data, process operating data, and filter details.

PDF: Wedge Wire Filter Element c/w vessel



316 Stainless Steel Wedge Wire Cylinder for Water Filter System

Model: Wedge wire with axial slots ( parallel to axis); wedge wire with radial slots (perpendicular to axis).

Shape: Cylinder
Flow: In to out
Material: 316 Stainless steel
Inner Diameter: 10 cm
Pipe Length: 25 cm
Slot Width: 0.05 mm
Filtration: 50 microns
Profile: Alternating inverted and upright triangles or normal triangular(cross section)
Ends: Closed with a 5 cm diameter hole in the center for piping purposes on one end and open on the other
Market: Supply to Singapore



Wedge Wire Cylinder to Filter Particles

Model: Stainless steel wedge wire cylinders, threaded at both ends.
Material: Stainless steel
Size: Cylinders between 3-6cm in diameter, about 5cm in length.
Filtration: 650 microns

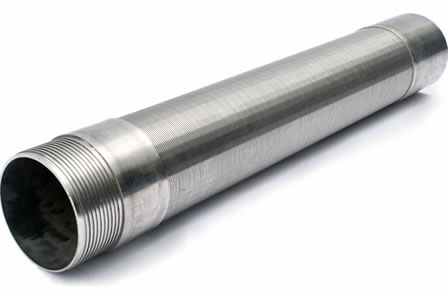

4" & 5" Stainless Steel Wedge Wire Well Screen for Water Well

Stainless steel wedge wire well screen 5 inch for 6 inch water well project
Model: Wedge wire well screen to be installed inside 6" water well
Material: Stainless steel
Size: 4 inch and 5 inch
Well screen length: 2 m x 20 pieces
Slot size: 1mm
Both Ends: Male / Female threaded ends



Stainless Steel Wedge Wire Screens for Mining

Model: Wedge wire mining mesh screens for loaded carbon mining
Material: Stainless steel 304



Wedge Wire Mesh Basket Filter

Model: Basket filter
Processing: Welded
Material: Stainless steel AISI 304 mesh
Filter shape: Basket
Market: Supply to Italy

Technical datasheet



V Profile Wedge Wire Screens ( 0.20mm or 0.25mm Slot )

Model: V profile wire
Material: Stainless steel 304
Sizes:
Outer diameter 699 mm x Inner diameter 679 x 210mm, 0.25mm slot
Outer diameter 799mm x Inner diameter 779 x 210mm, 0.25mm slot
Outer diameter 630mm x Inner diameter 610 x 280mm, 0.20mm slot
Outer diameter 730mm x Inner diameter 710 x 280mm, 0.20mm slot
Market: Supply to India

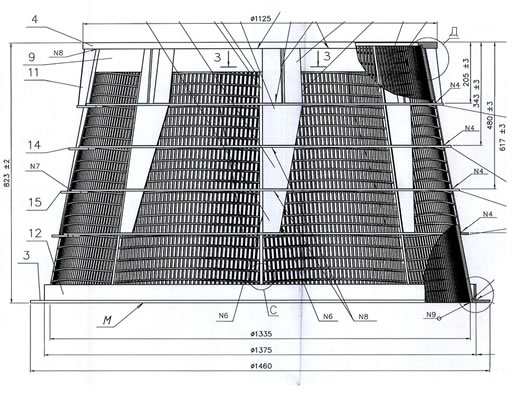

Wedge Wire Panels

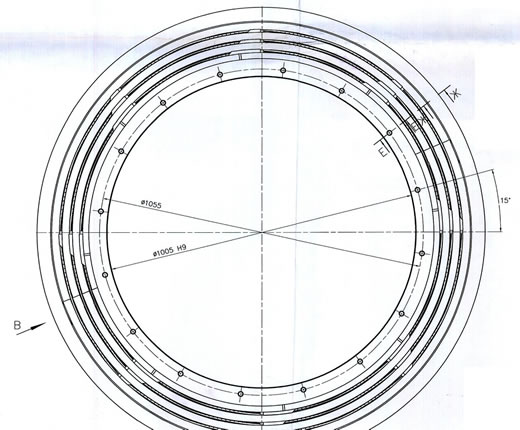

Model: V wire filter panel used in HSG-1100 and HSG-1300 centrifuges.
Project: Wedge wire panels for centrifuge working with coal preparation process.
Aperture size: 0.5 mm.

Wedge wire centrifugal filter panels for coal mining

Model: Mining panels, 2400mm x 1500mm with 0.8mm aperture
Material: 304 ss material
Structure: Square cut without frame
Supply to Philippines



Wedge Wire Slot Hastelloy C276

Model: Wedge wire slot
Material: Hastelloy C276
Size: Out diameter -70mm, wire -100/ C20, length - 1000 mm
Flow : Out to In
Filtration rating : 25 Micron

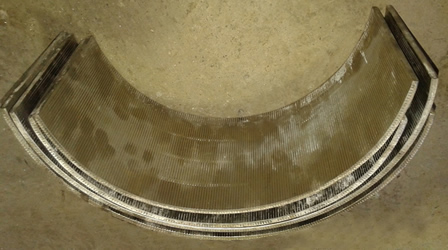

Curved Wedge Wire Screen ( Two Part Semi Cylinder )

Model: Welded curved wedge wire filter element (two part semi cylinder)
Project: Pusher centrifuges basket bellow wedge wire
Material: Stainless Steel 316
Size: ID 269mm x OD 281mm x 144 mm length; ID315mm x 327mm x 144 length
Wires: Wire width 2.2mm, wire height 4mm, slot width 0.2mm
Supply to Iran

Technical datasheet

Bellow wedge wire for pusher centrifuge

0.2mm Slot Centrifugal Basket Screen



304 Wedge Wire Cylindrical Screens

Model: Wedge wire cylindrical screen with standard flange on one end and closed on the opposite end
Material: SS 304
Size:
100mm cylinder diameter x 900mm L x 0.700mm slot opening, with standard flange;
30mm cylinder diameter x 400mm L x 0.700mm slot opening, with standard flange on one end and closed on the opposite end

SS 304 Mesh Welded Filter CylinderModel: Cylindrical wedge wire screen for edible oils & food related equipment.
Material: Stainless steel 304
Construction type: Welded
Shape: pipe / cylinder filter
Area required: 2 meter square approx
Dimension: 550  +/-1 mm  diameter ID x 1250 +/-5mm height
Flow direction: In to out
Filtration rating: 30 +/-5  microns
Project: Cylindrical wedge wire applicable for Sieving Equipment

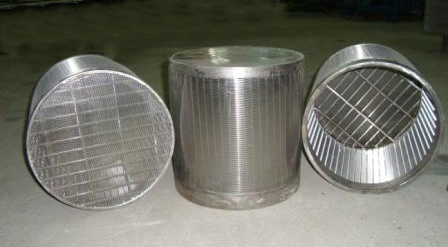

Stainless Steel Drainage Filter

Project: Stainless steel drainage filter with flange-collar welded on the top part of the filter

Stainless steel 316l v wire draining filter

Model: Slot wire screen
Material - SS316L
Size: Diameter - 450 mm x Height - 750 mm
Filter type - inverted (with a smooth surface inside)
Slot opening - 0.4 mm
Profile Width - 1.5 mm
Design:
Flange-collar welded on the top part of the filter, width 40 mm, thickness 10mm
The handle for extraction welded on a flange-collar bar-steel, diameter - 8 mm.
Supply to Kazakhstan

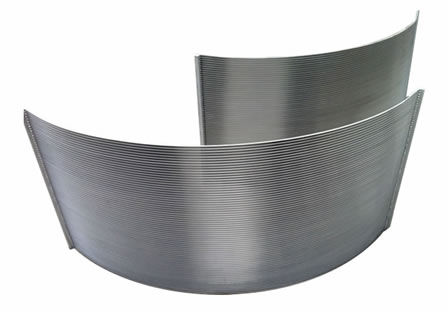

316 SS Wedge Wire Sieve Bend Screen for Saltwater Treatment

Sieve Bend Screen of 316 Stainless Wedge Wire


Model: Curved bend sieve made out of 316ss wedge wire
Material: SS 316

Technical datasheet



Welded 304 Wedge Wire Screens with SS Ring

Model: 120 micron wire wrapped wedge wire
Material: SS 304
Screen size: 34 ​0​mm inner diameter x ​700mm height (​W​edge ​W​ire ​Section ​ 1.2mm x 2.8mm)
Design: SS Ring with size 340mm inner diameter x 6 mm thickness x 15 mm height to be welded at bottom of the screen
Filtration: 120 micron

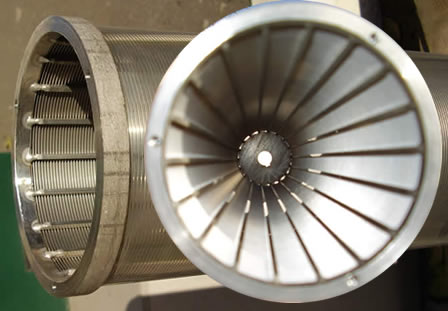

Stainless Steel V-Wire Screen

Stainless Steel V Wedge Wire Screen Filter
Model: V- wire wound screen
Material: SS
Filter diameter: 90 mm
Cylinder height: 605 mm
Slit size: 0.2 mm
Filter material: Stainless steel.



Wedge Wire Screen

Model: Custom wedge wire screens for USA customers.
Material: 304, 316 stainless
V wire profile
V wire to the rod
Overall design



Wedge Wire Filter Element

Model: Cylindrical filter
Material: Stainless Steel AISI 304
Slot size: 760 micron
Wire size: 60V or 47V.
Details for welding and construction of wedge wire elements



Electro Static Sieve Applied Wedge Wire Screen

Panel width: 383mm+/-2mm
Load: Maximum 4.5kg / square cm
Mesh opening: 5mm
Total height with support: 9.5mm to 10mm
Weight to be optimized: as low as possible
Support profile: to be flat
Material: S.S. 316 or S.S.316L



Stainless Steel Internal Axial Wedge Wire Filter

Cylinder size 4x10’
Open area 0.7mm
Material: Stainless steel 304.
For water re-using filtration system:
Designed to be used for systems of reused the water from the bath and shower into normal toilet.
Popular filter ratings are 0.25 mm (250 micron) and 0.50 mm (500 micron).

Our business is stainless steel mesh ( woven, welded, v wire, round wire ) and filter elements of all types. Serves industries including water wells, salt water treatment and various filtration, coal processing and various mining uses. We design, engineer and supply Quality Wedge Wires.
