Stainless Steel Architectural Mesh Curtains and Drapes for Interior and Exterior Decoration - Woven Wire and Rod Knotted, Chained Mesh, Ring Mesh - for Ceiling, Wall, Facade Curtains, Balcony Guarding, Sun Shading, Ventilation, Screening

Stainless steel mesh woven /chained / ringed fabric is ideal for interior and exterior architectural uses, as roof ceiling cladding, decorative curtains, wall draperies, light curtain, external facade cladding and sun shading screen.

Architectural Mesh Materials:

Materials grades include AISI 304, SS316 and etc. Majority of the mesh is manufactured by T304 stainless steel and T316 stainless steel with both internal and external applications. Most commonly Grade 304 is specified.

Other metal mesh decorative fabrics like Aluminum, Copper, Galvanized steel and alloy available at request.

Popular colors for Architectural Screen: Stainless Steel, Gold, Silver, Copper, Bronze and others.

Architectural Meshes for Indoor and Outdoor Decoration
Metallic mesh fabrics woven with rod, wire, wire rope, used externally and internally for decorative purpose Manufactured to ASTM E2016-15 and other related international standards set for woven wire mesh.

Metal SS Architectural Mesh Features:

1, High strength, multi design, multi color finish, sagging good.
2, Anti-corrosion, alkali and acid resistance, suitable for outdoor and seashore area.
3, Fireproof building material with good shading effects.
4, High temperature resistance, no color fading.
5, Excellent decoration effect with etensive use.
6, Recycled material, environmental friendly, long service life.

Product Scope:
Diameter of steel bar: 0.5-4 mm.
Diameter of cable wire: 2-4 mm.

Color: Gold, silver, copper, gun-black, brass, bronze, etc.
Weight: 6-11.2 kg/m2.

Architectural Stainless Steel Mesh
In mesh rolls of 9’ x 18’

Interior architecture decorative mesh woven with rod and wire rope structure
Material: Stainless steel mesh
Open area:60.6%
Cable Diameter: 2.75mm x 3
Mesh thickness:10mm
Cable Pitcth:68mm
Surface reatment:free oil
Rod Diameter: 4.5mm
Max Width: 6m
Rod Pitcth:14.5mm
Max Length:100m
Weight:10.9kg/m2

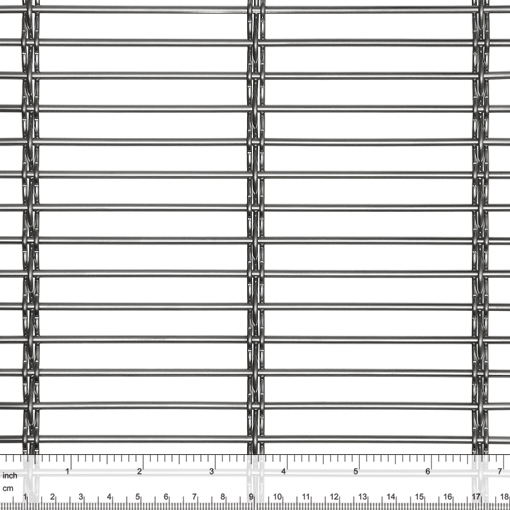

Inox Stainless Steel Rod and Wire Cable Net For Balustrade

Material: AISI SS316
Type: Bar & Cable Fabricated Mesh
Size: 510x510
Application: For Stair Railing, Balustrade, Blacony, Terrace



Diamond Pattern Architectural Mesh
Metal screens with diamond opening: 2" x 2", antique bronze color, for decoration, securing and storing

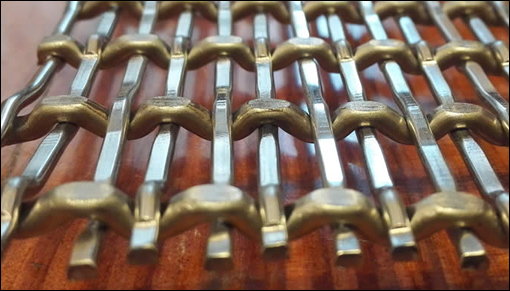

Copper coloured architectural mesh

Slot, rectangular hole metal mesh sheet
Type: Crimped Bar and wire rod



Architectural Metallic Curtains

Size: 108 inch wide x 84 inch long
Type: Chained wire & rod
Metal fabric curtain, bronze or other metallic colored.
Purpose: Privacy and spacing curtains

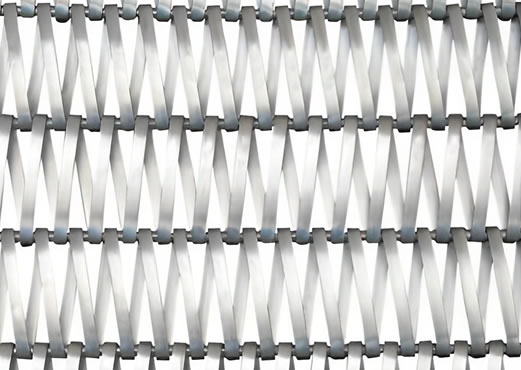

316L Stainless Steel Facade Mesh - 17% Open Rate

Facade of the stadium covers: metal mesh suspended on the steel pipe support structure.
Technical features:
Material: 316L grade stainless steel
Thread Size: 7/1 mm
Surface finish: matt, brushed
Splitter diameter: 5 mm
Open area: 17%
Surface weight: 11.5 kg / m2
Mesh width: 8 meters

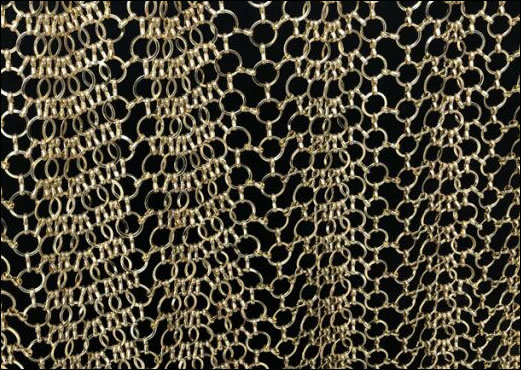

Architectural chain ring mesh for Various Space Curtains
Chain main ringed mesh with the following details:
Material: stainless steel with bronze finish
Wire diameter: approx. 0.5mm
Ring diameter/aperture: 3.8mm
Also other sizes

Material: SS, steel, aluminum
Color: Bronze, copper, gold
Structure: Chain main

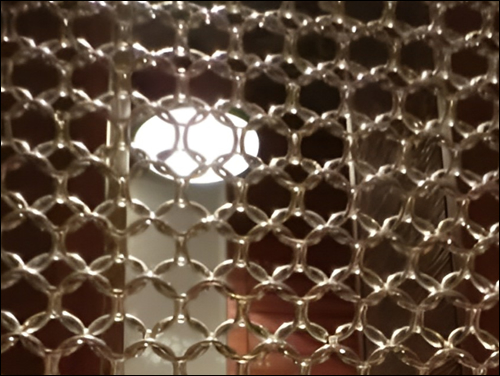

Stainless Steel Ring Mesh Curtains

Material: Ring Mesh of Stainless steel Wire
Wire diameter 0.5/1 mm
Ring diameter 3/10 mm
For Hanging Curtain 1 meter x 30 meter long.

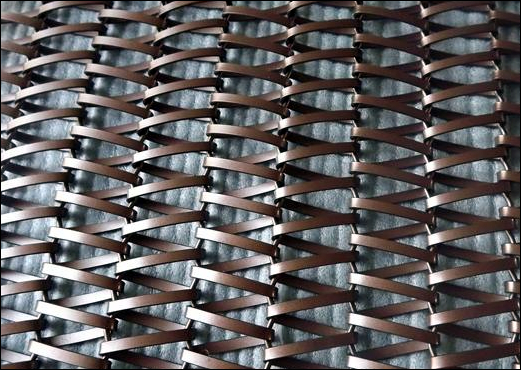

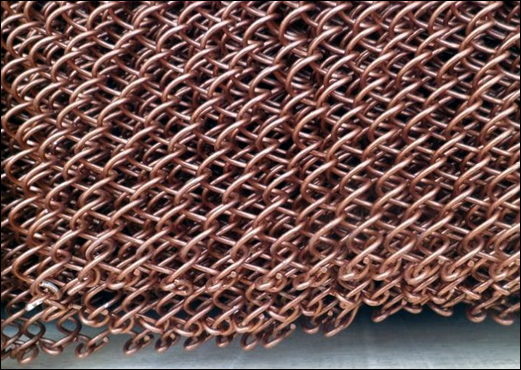

Architectural drapery mesh, for  interior decorative curtains hanging from ceiling

Pattern: S Spiral wire
Color: Phosphor bronze, black and other colors available.
Installation reference with drape details, in PDF

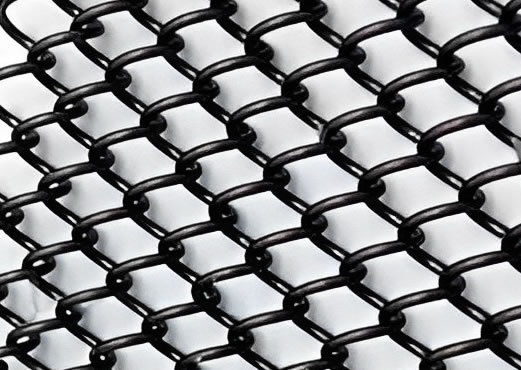

Black Metal Coil Mesh Partition Curtains

Fabric Material: Stainless steel 304/316/316L, Aluminum and Galvanized steel available at request.
Coil diameter: 1.6mm
Pitch: 12.2mm
Thickness :11.7mm
Weight :1.6kg/m2
Length: less than 50m
Width:less than 4m
Color: Black or Gunmetal Grey (RAL 7021)
Supplied with Fixing Tracks at Ceiling level for Shopping Mall Decoration

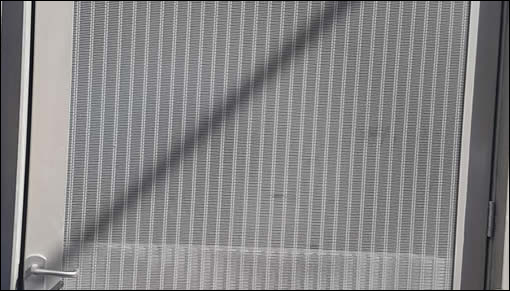

Stainless Steel Mesh curtain for door Guarding

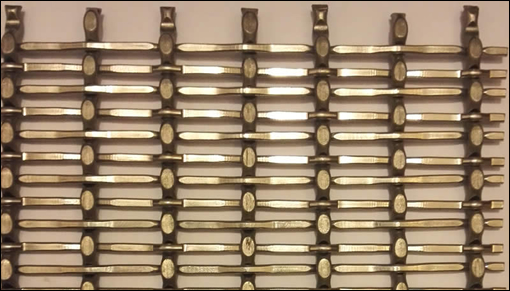

Architecture Wire Mesh for balcony

AISI 304, in vintage gold color
In panel size: Height 600 mm x length 2000 mm
Thickness of the mesh : 3,9 mm
Cross rod (big wire) : 3,41 * 1,85 mm
Spiral wire (small wire) : 2,2 * 1,2 mm
Pitch cross rod:16 mm
Pitch spiral:4,8 mm



Architectural Projects

Why Choose SS Mesh for Architecture Designs?
Benefits of using ss wire mesh: Stainless steel architectural mesh also known decoration wire mesh. Architectural Metal Mesh in stainless steel is fireproof, corrosion resistant, while the wire mesh configuration can be altered depending upon the level of air permeability required and the aesthetic style of the whole building or spaces. It is frequently used to combine security and safety while at the same time remaining aesthetically interesting and pleasing to the eye.

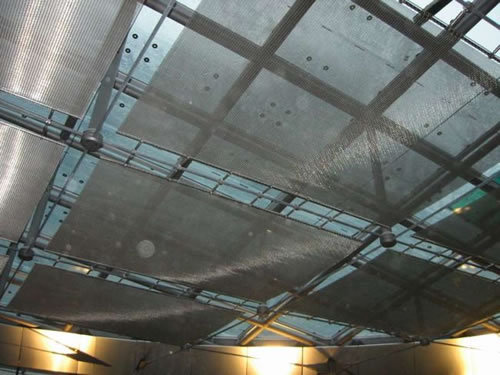

Stainless Steel Architectural Mesh Used as ceilings

Stainless woven wire mesh is a sustainable material which offers superior economic and environmental benefits as well as high strength to weight ratio, ease of fabrication and excellent aesthetic appeal.

Metal Curtain Wall Cladding Panels:

Exterior wall decorative wire mesh, shading screen, ventilation screen

Steel Rod Mesh Curtains:

Besides Woven Metallic Decorative Fabric, architectural mesh can also be processed from Perforated Metal and Expanded Mesh materials.
