Stainless Steel Conveyor Belt FDA Food Grade – Hygienic and Sanitary Conveyor Belting for Food and Beverage Manufacturers

Stainless Steel Conveyor Belt made of high-quality food-grade metal materials are produced to meet the stringent requirements of the food industry for material handling solutions. Also known as FOOD BELT, or HYGIENIC / SANITARY CONVEYOR BELTING, food conveyor belt is mainly used in bread processing, canned food, biscuits baking, onion and vegetable dehydration, instant noodles, and various food processings.

Major Materials:
Stainless steel, and alloys.

Mesh Types:
Flat wire mesh;
Balanced weave;
Chain rod reinforced.

Food Belting Features

1, Stainless Steel Food Belt offers excellent resistance to corrosion, wear, and temperature extremes.
2, The design of Food Grade Conveyor Belt is tailored to facilitate ease of cleaning and maintenance.
3, The belt's open grid structure allows for efficient drainage, further promoting hygienic operations.
4, Versatility is another key aspect of our food conveyor belt. It is suitable for a wide range of applications within the food industry, including but not limited to, baking, cooling, freezing, and packaging processes.
5, The belt has a robust construction which ensures it can handle various food products, from delicate pastries to heavy meat products, with consistent efficiency.

Application

Stainless steel mesh belt is suitable for many food processing industries, including:
1. Biscuit industry: used as conveyor belts, cooling spray machine mesh belts, flat bending machine mesh belts, chocolate coating machine mesh belts, biscuit machinery, egg spray machine and meat conveyingetc ;
2. Instant noodles and rice noodle production industry: Steaming mesh belt, frying box, drying hanging box, shredder, knife comb, noodle knife, noodle comb, pivot, forming box, etc.

We manufacture and supply Food Conveyor Belts with a variety of mesh styles, stainless steel grades, edges.

Customized Products and Services: We offer customized solutions to meet specific requirements, ensuring that our conveyor belts integrate seamlessly into existing systems.

Stainless Steel Flat Wire Conveyor Belt - For Food Processes -Drying, Cooling, Cooking

Material: High-quality 304 or 316 stainless steel
Wire Diameter: Typically ranges from 1.2mm to 3mm
Belt Width: Customizable, commonly from 200mm to 3000mm
Mesh Size: Varies, but commonly around 10mm x 20mm
Temperature Range: Suitable for temperatures from -40°C to 1100°C
Edge Finish: Welded or clinched edges for enhanced durability

Specific Application: Primarily used in the food processing industry, especially in baking biscuits, drying nuts / seeds, and cooking lines.

Stainless Steel Balanced Weave Conveyor Belt - Smooth Belting for Transporting Delicate Food Items

Material: High-grade 304 or 316 stainless steel
Wire Diameter: Typically ranges from 0.9mm to 3mm
Belt Width: Customizable, up to 3 meters wide
Mesh Size: Balanced weave with variable mesh openings, depending on application
Temperature Range: Suitable for temperatures up to 1150°C
Load Capacity: Designed for medium to heavy loads
Specific Application: In various applications within the food industry, including cooling, freezing, and pasteurization processes, particularly suited for production of snacks, small baked goods, and confectionery.

Stainless Steel Rod Reinforced Conveyor Belt - For Heavy Duty Applications within Food Industry

Material: Premium 304 or 316 stainless steel
Rod Diameter: Usually ranges from 5mm to 12mm
Belt Width: Custom sizes available, typically up to 2 meters
Mesh Size: Variable, depending on specific requirements
Temperature Range: Suitable for use in temperatures up to 1000°C
Design: Features cross rods and a flat surface for added strength
Specific Application: Designed as transporting large cuts of meat, heavy trays, and large containers, particularly effective in canning operations, large-scale baking, and in the transport of heavy food items through cooking or cooling processes.

Steel Wire Rod Conveyor Belt FDA Food Grade

Type: Steel wire rod belt
Quality: Food grade Conveyor belt (FDA APPROVED)
Width: 125mm
Thickness: 1.5mm
For food and beverage processing plants
Exported to USA

Flat Flex Wiremesh Conveyor Belt for Bread Processing

Exported to Philippines
Flat Flex Conveyor Belt, Single Loop
Application: Bread Processing
Size: 550mm Width x 9 Meters Length
Wire Diameter: 2mm Diameter
Housing Material: SS316, or SS 304
Suitable for Ambient Temperature
Complete with Plastic Sprockets 1” Diameter

Stainless Steel Wire Mesh Conveyor Belt - for Cookies Factory - Light Weight Application

Belting description:
Stainless Steel Wire Mesch Conveyor Belt
Width: 1060mm x Length : 3360mm
Round Wire Diameter: 1.5mm (-0 / + 1.0)
Longitudinal Mesch Pitching 20mm
Transversal Mesch Pitching 8mm

Detail design:
Plain Roller Driven

Project: To replace following mesh belting in attached picture, for Dominican Republic customers.
Market: Dominican Republic

Food Belting to replace the old one:

Balanced mesh weave belt in ss 304

Stainless Steel Wire Mesh Conveyor Belt for Bakery Industry
Project: To replace carbon steel belt with stainles steel belt

Reason: Current belt made form carbon steel easily get rusty and the rust is not good for Baker. For this reason, our customer decided to replace carbon steel mesh belt with stainles steel belting.

Size:
Width 2.5 m
Length 12.25 *2 m
Drum diameter 45 cm

We propose following food belt for bakery:

Corrosion resistant stainless steel wire mesh belt for bakery.

Food Process Belt

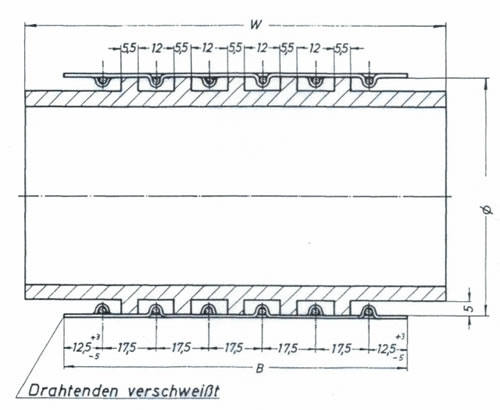

Stainless conveyor screen with roller
Solution to Germany Customers

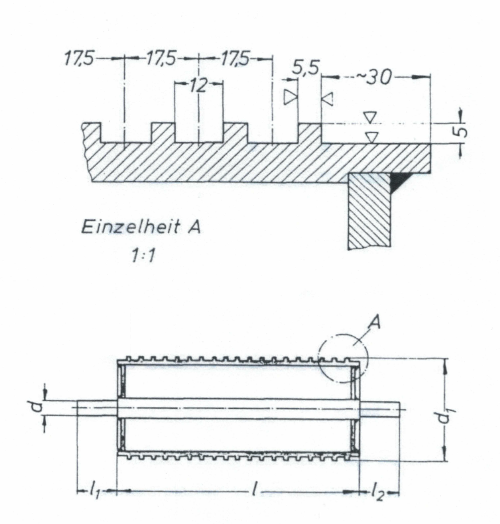

Roller design:

Stainless screen conveyor roller

USA Customer needs Process Belt for Feeding Conveyor and Discharging Conveyor in Cake Processing

To replace a damaged conveyor screen with a new belt made from 316 stainless steel, polyester belt as options.
The application is for a belt filter whereas the roller at one end compresses the cake.

Specifications below:

a) Feeding conveyor

Process belt for grooved rollers ref 17.5V4/006/040/LN/10
Made from stainless steel AISI 316
Warp diameter 2.0 mm, Weft diameter 1.5 mm
Open mesh area 15 x1.5 mm
Special loop welded edges 3/2
Length (L) 4.300 mm x Width (B) 1.620 mm
Surface 6.966 m²

b) Discharging conveyor

Process belt for grooved rollers ref 17.5V4/006/040/LN/10
Made from stainless steel AINSI 316
Warp diameter 2.0 mm, Weft diameter 1.5 mm
Open mesh area 15 x 1.5 mm
Special loop welded edges 3/2
Length (L) 4.700 mm, x Width (B) 1.620 mm
Surface 7.614 m²

Food Conveyor Belt Stainless Steel Medical Grade

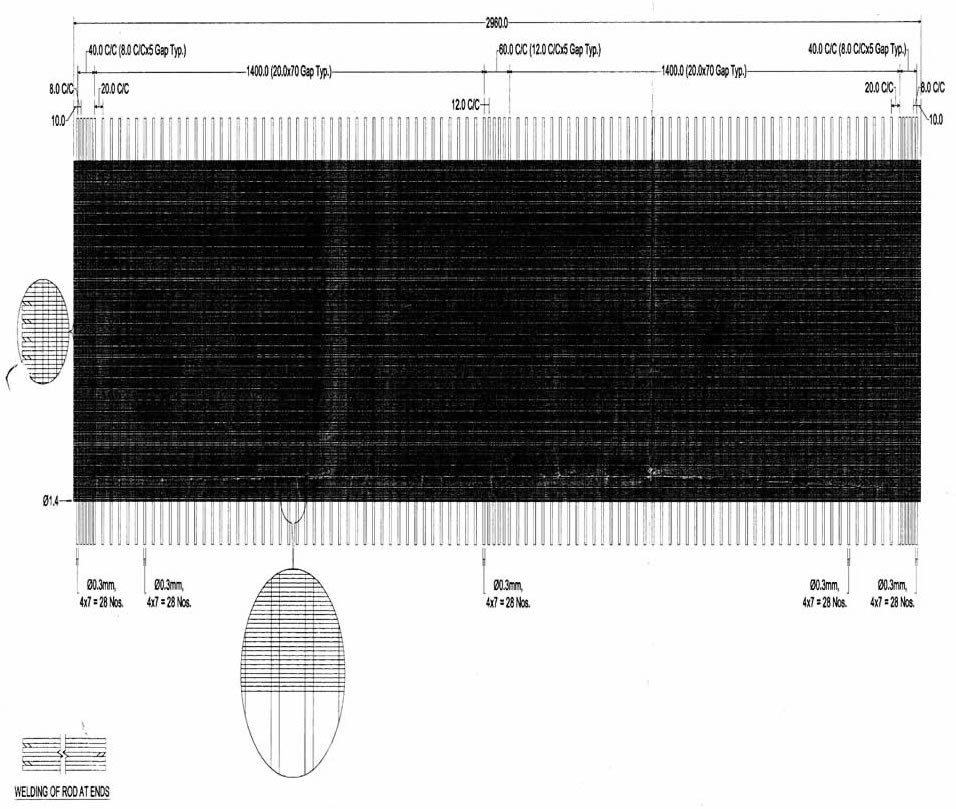

SS304 metallic belt for conveyor belt dryer

Type: Dryer Hinge Joint Wire Cloth Belt

SS304 Metallic Belts Specifications :

1. SS 304 Cross bar – Dia 1.4401 mm
2. Gap between two bars 1.4 mm
3. Total weaving number 142 & weaving pattern
4. SS 304 weaving wire Dia 0.3 +/- 00 mm
5. No. of stands in one weaving 4*7= 28 Number minimum
6. During weaving use single rope wire to avoid joint
7. Take maximum care at the time of heating of adjustment weaving rope
8. Proper fusion welding of cross bar – Both side ends
9. Diagonal dimensions of belt should be same

Dimension

27475 mm X 2960 mm
26025 mm X 2960 mm

For India Food Industry

Without cleats
Welding of Rod at ends
Material: SS 304
For Onion and vegetable dehydration conveyors

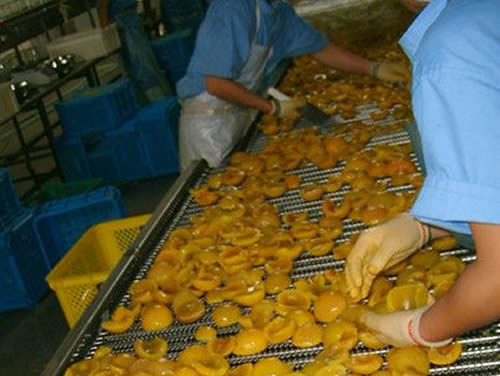

Food Belting for Canned Food

Stainless steel mesh and rod chain belt

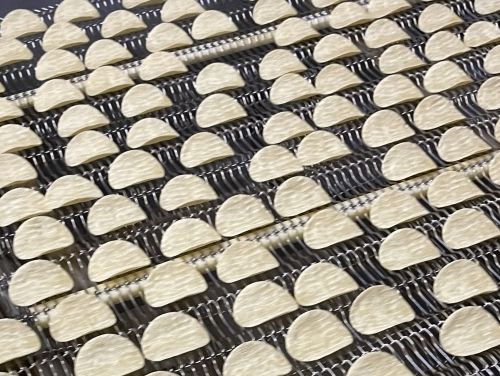

Fried Potato Chips Processing Belting

Ladder type mesh belt
