Perforated Metal Conveyor Belts - Stainless Steel Round Hole Meshed Conveyor Belt - Punched Metal Conveyor Belt

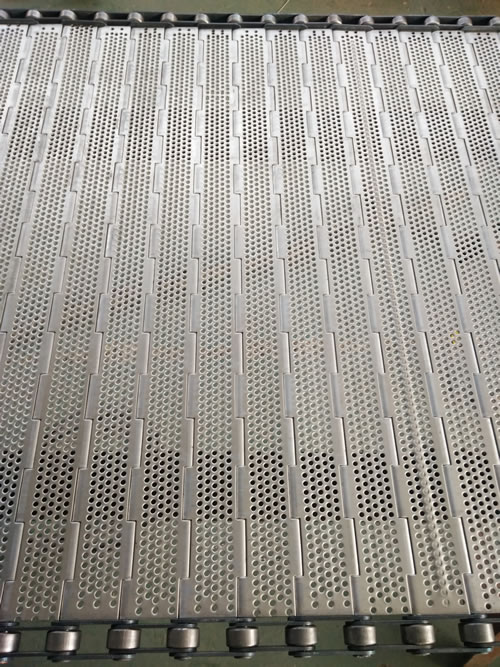

Perforated Stainless Steel Conveyor Belt with Chain Drive is a robust and efficient conveying solution, combining the durability and hygiene of stainless steel with the reliability of a chain drive mechanism. The precisely punched perforations in the stainless steel belt and a sprocket-driven chain system, ensures smooth operation for applications requiring both strength and precision in material handling.

Product Overview

Perforated metal conveyor belts are also known as Perforated Steel Belts, Punched Metal Conveyor Belts, Holed Conveyor Belts, Screen Conveyor Belts.

Key components:

Metal Sheet:

The primary material, usually stainless steel, chosen for its strength, corrosion resistance, and suitability for the application.

The metal sheet is punched to create a specific pattern of holes, which can be round, square, or custom shapes.

Perforations (Holes):

The holes are strategically placed for specific functions like ventilation, drainage, or to allow particles to pass through.

The size, shape, and pattern of the holes are tailored to the application's requirements.

Edges:

Edges can be reinforced or treated to prevent snagging, wear, and ensure smoother operation.

Common edge treatments include welding, folding, or adding chain links or bars for reinforcement.

Perforated Conveyor Belt Products - Types, Specifications, Case Study

We manufacture and supply Punched Metal Conveyor Belts with a variety of perforations, stainless steel grades sheets, edges. The metal plate conveyor belt is commonly used with a chain drive system, also compatible with other types of edge drive systems. The choice of drive system often depends on the specific application, load requirements, and operational environment.

Major Punched Stainless Steel Conveyor Belts:

Round Hole Perforated Conveyor Belt in AISI 304
Specification: AISI 304 Grade Metal Sheet with Round Hole Perforation
Hole Diameter: 3mm - 10mm
Sheet Thickness: 1mm - 3mm
Belt Width: 500mm - 2000mm

Suitable Applications: Ideal for general food processing, pharmaceuticals, and light to medium material handling.

Staggered Round Hole Perforated SS 316 Stainless Steel Conveyor Belt
Specification: AISI 316 Grade with Staggered Perforation
Hole Diameter: 5mm - 20mm
Sheet Thickness: 1.5mm - 4mm
Belt Width: 600mm - 2500mm
Suitable Applications: For harsh chemical environments or marine applications.

Square Hole Perforated Metal Conveyor Belt SS310
Specification: AISI 310 Grade with Square Hole Perforation
Hole Diameter: 2mm - 15mm
Sheet Thickness: 2mm - 5mm
Belt Width: 800mm - 3000mm

Suitable Applications: AISI 310 grade perforated metal conveyor belt is suitablel to withstand extreme temperatures, for heat treatment plants, baking ovens, and other high-temperature processing environments.

Custom services available:

All sizes and specifications of punched stainless steel conveyor belts can be customized to meet specific operational requirements.
Factors such as the type of materials being conveyed, specific environmental conditions, and load capacity should be considered when determining the optimal design.
Our customized belts ensures that the conveyor belt is tailored for maximum efficiency, durability, and suitability for each unique application. Welcome contact to discuss customization options and ensure the conveyor belt meets the specific needs of your application.

Case Study:

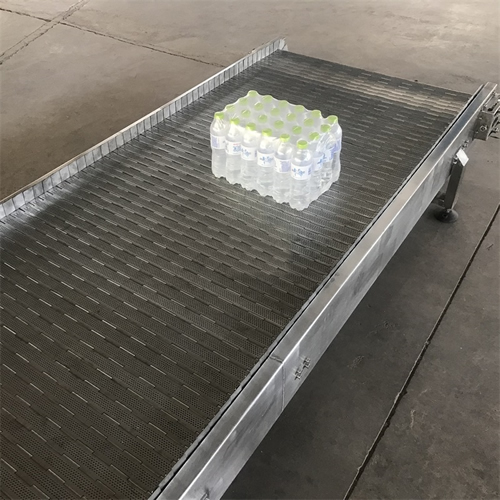

Stainless Steel Punched Metal Conveyor Belt
Export to Philippines
Material: Stainless Steel Punched Sheet / Plate
Sides: Both sides RC chains

Chain edge stainless steel punched conveyor belt mesh for bottled water production.
