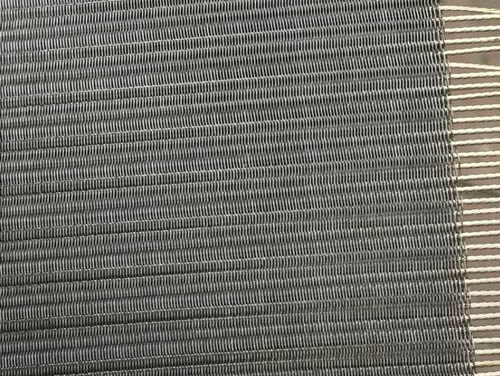

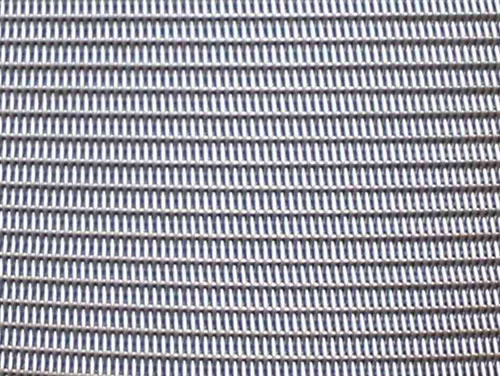

Braided Wire Strand Dutch Weave Mesh Belt for Artificial Particle Board Production

Dutch Weave Mesh Conveyor Belt is a kind of Sheet type multi-ply woven mesh belt made of prime quality stainless steel wire and strand, for particle board conveyor belt.

Weaving: The warp wires are single wires and weft wires are braided wire strands or ropes, woven in Dutch weave style. The mesh surface is flat, the joints are firm, the air permeability is good, and the service life is long.

Technical advantages:
As a supporting equipment in wood machinery and equipment, Dutch weave mesh belt for particleboard conveyors overcomes the wrinkles, pleats and other disadvantages that occur during the hot pressing process, improves the quality of wood board production and reduces the loss of waste products.

Application: Dutch weave mesh mat is mainly used in drying and pressing of particle board, artificial board and other wood production.

Technical Parameters:

Material: SS 304, SS 316, low carbon steel wire available upon request.

Wire diameter:
Warp wire 0.25mm
Weft wire / strand in multi ply: 0.35*7mm
Thickness: 1.7mm
Weight: 6kg per square meter
Mesh length: 8 to 19m
Mesh width: 500 to 2850mm
Customized size available
