Chain Driven Mesh Conveyor Belt with Mesh Coils, Rods and Roller Chains

Chain Drive Wire Mesh Belt is a durable and versatile conveyor solution, integrating a robust metal mesh with side chains for efficient, stable material handling across various industries.

Products Overview
Range of materials: Stainless steel, carbon steel, galvanized steel, steel alloys of various kinds.

Structure:

Chain Drive Mesh Belt is structured with metal wires / rods / plates, forming a stable grid-like mesh, integrated with side chains and reinforced by cross rods for even load distribution, all finished with smooth edges for safety and durability.

Made of following Components
Wire / rod mesh coils / sheets;
Drive Chains;
Cross rod supports.

Chain edge design conveyor belt offers following Features:

Uniform in pitch
Straight tracking
High tensile strength
Durable under severe loads
Longer belt life than pin roll drives
Choose from a variety of chain weights and strengths
Compatible with different conveyor mesh belts
Available with guard edges, lifts and/or lane dividers

Chain Edged Mesh Conveyor Belts - Weave Mesh, Rod Network, and Flat Belt

We supply chain drive mesh belting with combination of chain, cross supports and mesh overlay, with required guard edge plates, lifts and lane dividers to meet customers specific requirements.

Ranges of wire conveyor belts with chain-driven conveying system and specific applications:

Each designed to suit specific applications and load requirements, most common belt types include:

Flat Wire Belt: Flat surface straight wire rods typically used for light to medium loads, with chain drives for stable and even conveying.

Balanced Weave Conveyor Belt: With alternating right and left-hand spirals joined by crimped or straight connecting rods, balance woven mesh can handle varying load sizes and weights, with chain drive systems.

Duplex Weave Belt: Double-layered wire mesh belts providing extra strength and load capacity, ideal for heavy-load applications with chain drive mechanisms.

Cordweave (Compound Balance) Belt: Tight and dense weave mesh with effective chain drive operation, suitable for small and fragile product conveying.

Honeycomb Belt: With large open mesh pattern, this belt used in chain drive systems are for air flow and drainage conveying.

Ladder Belt: A lightweight belt with open mesh, suitable for light loads, often used in chain-driven systems for drying, cooling, heating applications.

Rods Cross Supports

Rods are frequently used as cross supports offering following benefits, Channel / Angle / Flat Bar may be used based on application requirements.

Strong rods utilized as Cross Supports for Enhanced Stability

Length matching overall belt width for Uniform Support

Edge Finishing Options: Welded, Washer Welded, Brazed, Washer Brazed, Drilled, and Cottered as Specified

Chains: Roller Chain, Drag Chain without Roller, Detachable Chains - Chains supplied to specific uses

Chains - Roller Chains
Engineering Class Bushed Roller Chains are durable all-steel chains, suitable for heavy-duty service and challenging conditions, with oversized options available for positive drive chain edge belts.

Drag Chains - without Roller
Drag chains made from malleable iron or high-strength cast alloy, are suitable for medium loads at low speeds and high temperatures. Stainless steel drag chains are made for extreme conditions.

Detachable Link Chains
Detachable link chains, are used in positive drive conveyors for light loads and slow speeds, requiring good lubrication and nonabrasive operating conditions.

Guard Edge:

Guard edges, positioned inside the chain, are customizable in height and material according to customer specifications and are typically used with round cross supports like rods, turned down rods, or pipe/rod, inserted through holes in the guard edge. These edges are usually plates which can be offset, interlocking, or flat, and are assembled in either a shingled or staggered fashion. The plates, square or rectangular in shape, can also feature flared or notched designs to suit specific conveyor needs.

Guard edge types:
Notched plate
Standard guard edge plate
Flared guard edge plate

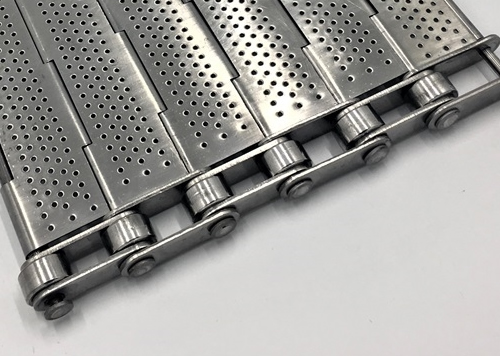

Chain Drive Perforated Screen Belts

Chained metal plate belt

Mesh type: Round hole perforated metal plate
Chain positve drive with rod
Material: Stainless steel 304
Edge detail: Chain edged without guard plate

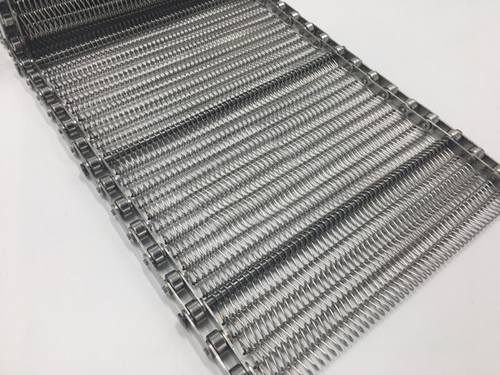

Balanced Weave Chain Mesh Belt

Chain Drive Balanced Weave Mesh Belt - in 304 stainless steel for food freezing

Balanced weave chain mesh belt is made of stainless steel crankshaft double-spiral mesh belt, with stainless steel rod, and carbon steel chains installed on both sides. The mesh belt and chain can achieve synchronous operation by adding rods.
This chain mesh belt features: 1, Straight belt conveying with sprockets used to rotate the chain, 2. By adjusting the different pitches of the mesh belt, different types of chains can be installed.3. With chains and rods, the edges can be folded and guard plates can be added.

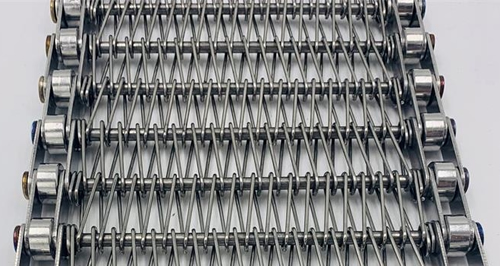

Chain Drive Wire Rod Linking Conveyor Belt - for Heavy Duty Conveying System

Material: Wire and rod linked

Mesh material: Stainless steel spiral mesh, steel rod belt, plastic coated wire rod braided mesh

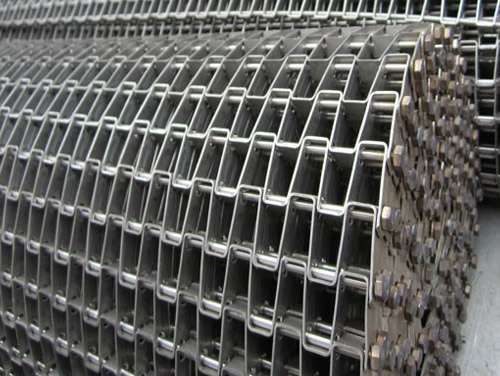

Stainless Steel Chain Conveyor Belt - Rod + Metal Plate Plate Structure

Chain drive rod plate conveyor belt for heavy duty furnce and food processing

Mesh type: Rod metal plate linked
