Ladder Conveyor Belt (316 SUS)- Rod Belt - Wire Looped Flat Rod Belt

Ladder Conveyor Belt is a durable material handling conveyor belting processed with stainless steel wire rods looped into a robust ladder-like mesh structure, suitable for various applications, especially in industries like food processing, packaging, and drying operations.

Products Overview

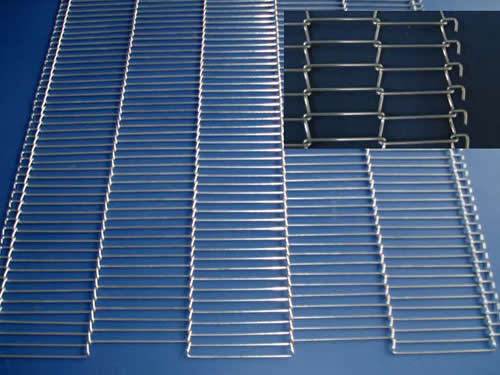

Ladder conveyor belt is also known as Rod Belt, because the construction of the belt is made with straight rods (resembling the rungs of a ladder) connected by straight or U-shaped links.

Features:
Simplicity of the ladder like design;
Open mesh structure;
Robust stainless steel material;
Good air circulation and drainage;
Flexible configuration;
Easy cleaning

Wire Rod Ladder Type Conveyor Belt Products - Types, Specifications, Case Study

We manufacture and supply ladder conveyor belt in a variety of material types and sizes.

Customized Products and Services

We supply customizable ladder beltings to meet specific operational needs.
Welcome contact us for recommended solution for your specific requirements, from lightweight to heavy-duty material handling.

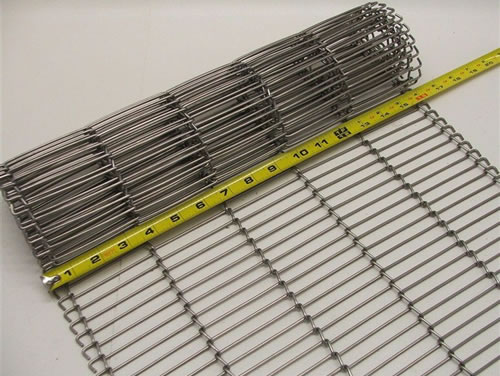

Food Industry Wire Loop Belt Conveyor ( SUS 316 )

Belt conveyor for food processing application
Material: Stainless steel 316

Stainless Steel Wire Ladder Belt for Conveyors - SUS 304

Export to Vietnam
Specification
Diameter of wire: 1.6mm
Material: Stinless steel 304 (SUS 304)
Step of mesh belt: 5mm (from center of wire to wire)
The slot of mesh belt: 3.4mm
Width of each mesh belt: 66mm
Total width of mesh belt: 450mm
Mesh length: 4000mm
Mesh length: 2000mm

Stainless Steel Flat Wire Belt for Manufacture of Machines

Flat wire belt 65” x 252”
For conveyors with 4” drive roller and 4” idler roller.
Components: Drive rolls bearings, motors also available upon request.

Conveyor Mesh and Pulley
Exported to Spain
Ladder Belt information
1) Diameter of wire: 1.60mm
2) Zig-zag shape dimension: 63,51mm
3) Pitch: 7,25mm

Material type: AISI304

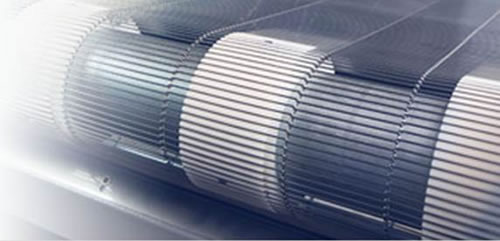

Mesh belt with pulley:

Pulleys specifications:
Pulleys with teeth, for step of 7,25mm, DP140,77mm, DE 146,37mm, ID:100mm
With the teeth tip conical, and for tread holes for hold with the shaft.
Pulley without teeth with DE 146,37mm and ID 100mm, and for tread holes for hold with the shaft.

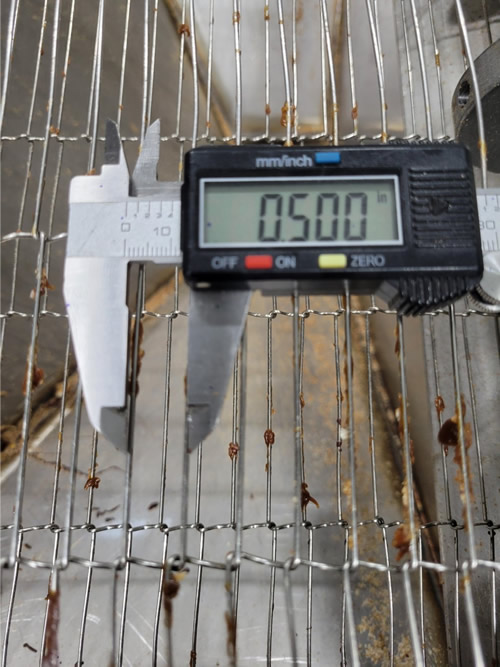

Snapper Wire Belt

SS Flat Flex Snapper Wire Belt
Structure: Ladder mesh
Dimension
Wire Belt Width 36”
Wire Belt Link Width 2.750”
Wire Belt Link Length .500”
Wire Diameter .050”

To replace following ladder mesh with new ladder belt:
