316 and 304 Stainless Steel Expanded Mesh-Flattended Diamond Mesh Sheet and Raised Hexagonal Mesh

Hehua supplies Stainless Steel Expanded Mesh in rolls, panels and coils, available in various gauges, sheet thickness, hole sizes and strands. This stretched metal mesh sheets made by cutting and stretching metal sheets, with unique combination of strength and light weight, are suitable for architectural facades, elevator cladding, protective safety barriers, walkway and platform gratings, ventilation systems and other industrial uses.

Expanded mesh features:
Stainless steel expanded metal has characteristics of corrosion resistance, strength, and versatility, open and durable structure, allowing for effective filtration, light diffusion, providing distinctive aesthetic decorative touch.

Material: AISI 304, 316, 316L, 410, also Aluminum, Titantium, Galvanized Steel, etc upon request.
Pattern: Diamond, Square, Hexagonal
Mesh sheet: Flat, raised.
Surface: Natural shine, powder coated.

Application:
Stainless steel expanded mesh is used in various applications, ranging from architectural design to industrial safety and building materials.

Architectural facade mesh with functional benefits of sun shade screen and ventilation screen.
Security Fencing Barrier in industrial and commercial areas.
Expanded metal sheet can be used for making walkway floor gratings and industrial platforms, providing a sturdy, slip-resistant surface that can withstand heavy foot traffic.
Automobile air filter parts
Expanded mesh for Machine Guards, offering protection while ensuring good airflow and visibility.
Shelving and Storage panels
Construction of ventilation ducts, air vents, and HVAC components
Elevators Cladding Panels in elevator cabins and escalators.
Interior room dividers, wall panels, and decorative screens, offering a contemporary and industrial look.

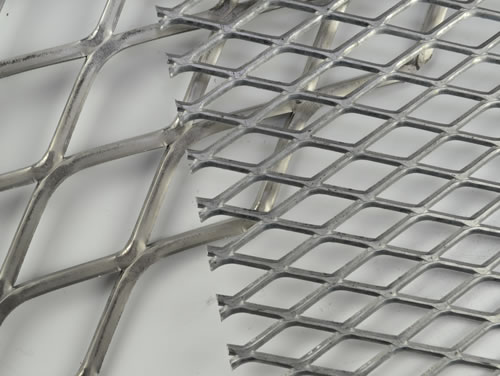

Expanded Mesh Sheet Diamond Hole Shape

Stainless Steel Expanded Mesh Diamond Hole (SS304 Grade)

Hole shape: Diamond
Hole Size: 5*10 mm and 7*12 mm
Thickness: 0.7mm
Width:1.24 mm

Sheet size : 4 ft x 8 ft/sheet
Material : stainless steel 304
Mesh size : 1.33 swd,3.15 lwd
Gauge: 16 gauge
Opening size : 1.062 SWO, 2.75 LWO
Strand size : 0.050 thk, 0.119 width

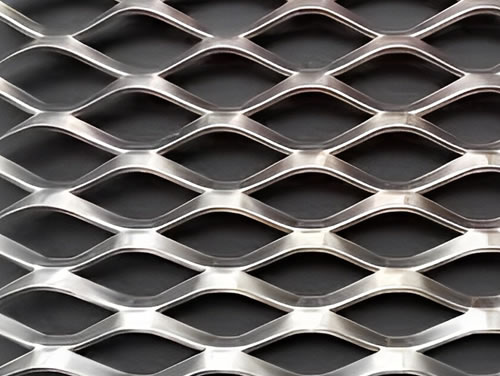

Uses: For automobile industry, making of air filter mesh

Diamond Hole Expanded Mesh (SS316 Grade)

Hole shape: Diamond
Hole Size: 5*10 mm and 7*12 mm
Thickness: 0.7mm
Width:1.24 mm

Sheet size : 4 ft x 8 ft/sheet
Material : stainless steel 316
Mesh size : 1.33 swd,3.15 lwd
Gauge: 16 gauge
Opening size : 1.062 SWO, 2.75 LWO
Strand size : 0.050 thk, 0.119 width

Expanded Mesh with Powder Coating

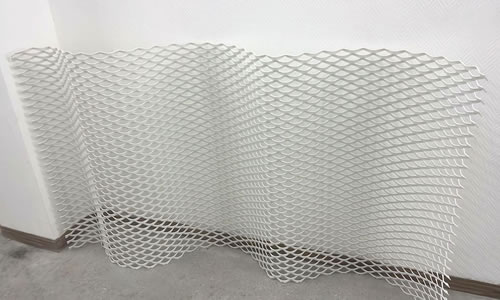

 White Expanded Metal
Sheet 180cm(L) x 30cm(W)

Hole shape: Diamond
Sheet flattened

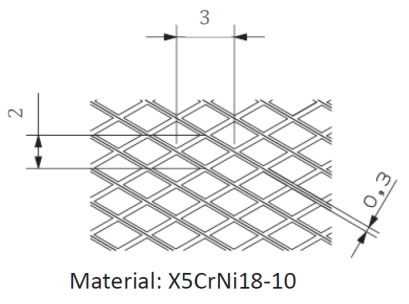

Expanded Stainless Steel Sheet Flattended

Material: X5CrNi18-10

SS304 Expanded Wire Mesh

Expanded Metals Rolls
Thickness1.2mm x SWD12.5 x LWD30.48 x strand 2.2MM x 1.22M x10M

AISI 304 Expanded Metal Mesh

Expanded metal with following technical specifications:
Material: AISI 304
Long way of mesh (LWM): 12.5 mm
Short way of mesh (SWM) : 6,5 mm
Sheet thickness : 0.5-8mm
Strand Width: 0.5mm-10mm

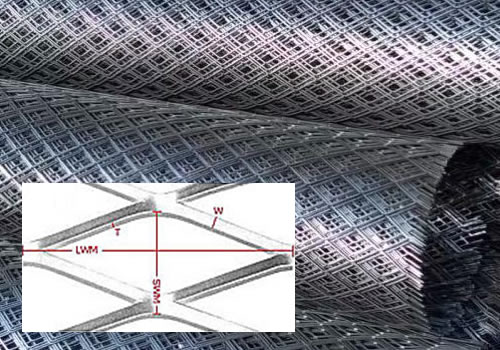

LWM= Long way of mesh
SWM= Short way of mesh
W=Strand width
T=Thickness

Sheet width: 15 cm, 20 cm, 25 cm, 40 cm, 50 cm
Length: 1.2 mt, 1,8 mt, 3,5 mt, 4 mt, 5 mt

316L Expanded Sheets
316L stainless steel expanded sheets
Sheet thickness 1mm

Expanded metal mesh for security enclosure
Pattern size 50x18 mm
Grade: SS316

Expanded Mesh -Raised Sheet

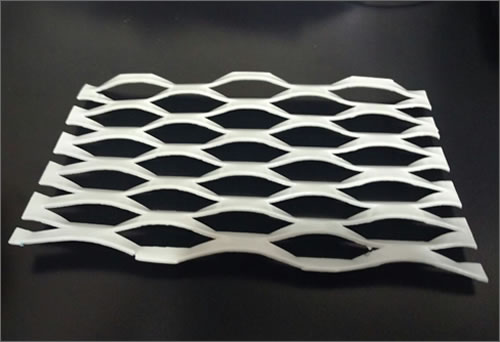

Expanded Louvered Metal Sheets
Size: 8’ x 4’ sheets of the below
Raised pattern expanded mesh louvered metal

Expanded Plate Raised Mesh : 20 mm, Diamond Width : 50 mm
Length : 5 mmT, 4' W, 8'L
Material : SS 410

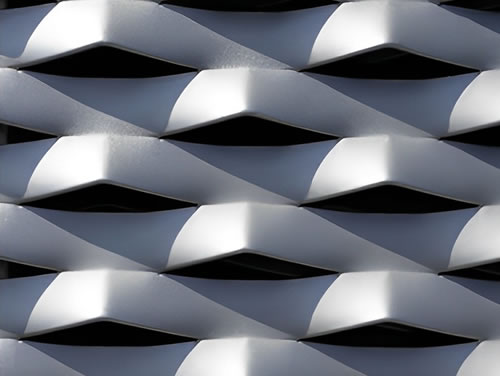

SS 316L Expanded Mesh (Raised Type) for Architectural Facade and Ventilation

Expanded Stainless Steel Grade 316L Mesh
2mm thick, Size 2.5m x 4m

SS304 Expanded Metal (Diagonal Hole)
Expanded metal grating
3mmT X 5’ X 10’ (Diagonal height 50mm)

Expanded Mesh  304 s/s Light Type
Light Gauge   0.75 >1mm
Opening. 6x4mm

Expanded Mesh Square Pattern

Expanded Mesh
Sheet 6ft x 20ft
Gauge #16
1/2" Square Pattern

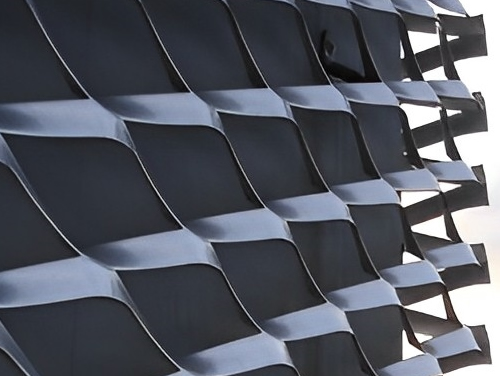

Projects - Expanded Mesh Façade Screens



Expanded Meshes in Titanium, Carbon Steel and Hot Dipped Steel

Titanium Expanded Mesh
Flattened expanded mesh
Mesh 3.0 x6.0 mm strand 1.2 mm thickness: 1.5 mm
Sheet size: 1000x2000 mm

Carbon Steel Expanded Metals

Expanded metal mesh 50X50X10 SWG (3,2 MM) 1940 MM X 1940 MM
Material: Carbon steel

Hot Dipped Galvanized Expanded Metal
Surface: Hot-dipped galvanized coating .06mm zinc coating
1/2" #13R raised type, expanded metal mesh (120" LWD x 48" SWD)

Flattened Expanded Metal Mesh - Diamond Shape
Powder coated steel
Sheet of Diamond cut mesh

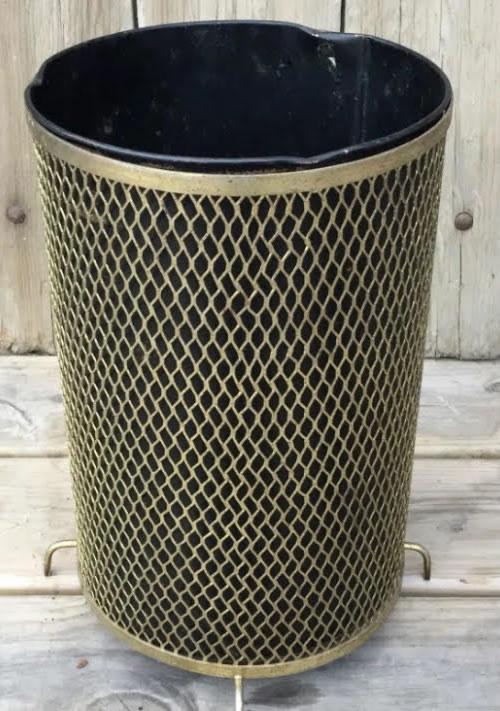

For making of trash / waste basket
