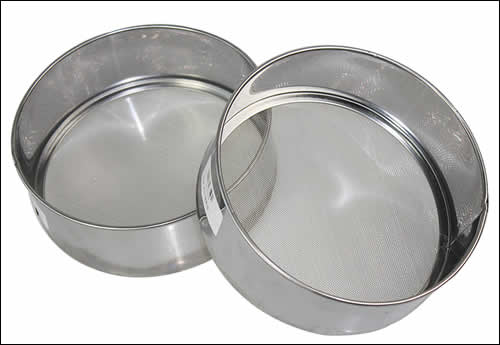

Stainless steel test sieves Case Study

Stainless steel woven wire mesh is popularly used as filter and sieving materials for test sieves and other filtering devices. The passing particle size of the test sieves depends on the woven wire mesh openings it uses. Hehua supplies Tyler standard and other standard test sieves for customers with different frames. 32mesh, 35mesh, 42mesh, 48mesh, 60mesh stainless steel test sieves are popular and listed below with detail technical information for case study. For custom sizes and special sifting and screening materials, welcome to contact us.

(1) Stainless Steel Wire Mesh Sieve
SS Frame/SS Wire.
Sieve Opening; 0.500 mm.
Outer Dia: 8".
Full Height Sieves: 2".
US standard: 35.
Tyler Standard: 32 Mesh.

(2) Stainless Steel Wire Sieve for Testing:
SS Frame/SS Wire
Sieve Opening; 0.425 mm.
Outer Dia : 8".
Full Height Sieves: 2".
US standard: 40.
Tyler Standard: 35 Mesh.

(3) Stainless Steel Wire Cloth Sizing Sieve
SS Frame/SS Wire
Sieve Opening; 0.355 mm.
Outer Dia: 8".
Full Height Sieves: 2".
US standard: 45.
Tyler Standard: 42 Mesh.

(4) Stainless Steel Standard Test Sieve
SS Frame/SS Wire
Sieve Opening; 0.300 mm.
Outer Dia: 8".
Full Height Sieves: 2".
US standard: 50.
Tyler Standard: 48 Mesh.

(5) Stainless Steel Wire Mesh Cloth Sieve
SS Frame/SS Wire
Sieve Opening; 0.250 mm.
Outer Dia: 8".
Full Height Sieves: 2".
US standard: 60.
Tyler Standard: 60 Mesh.
